Cleveland
C60764

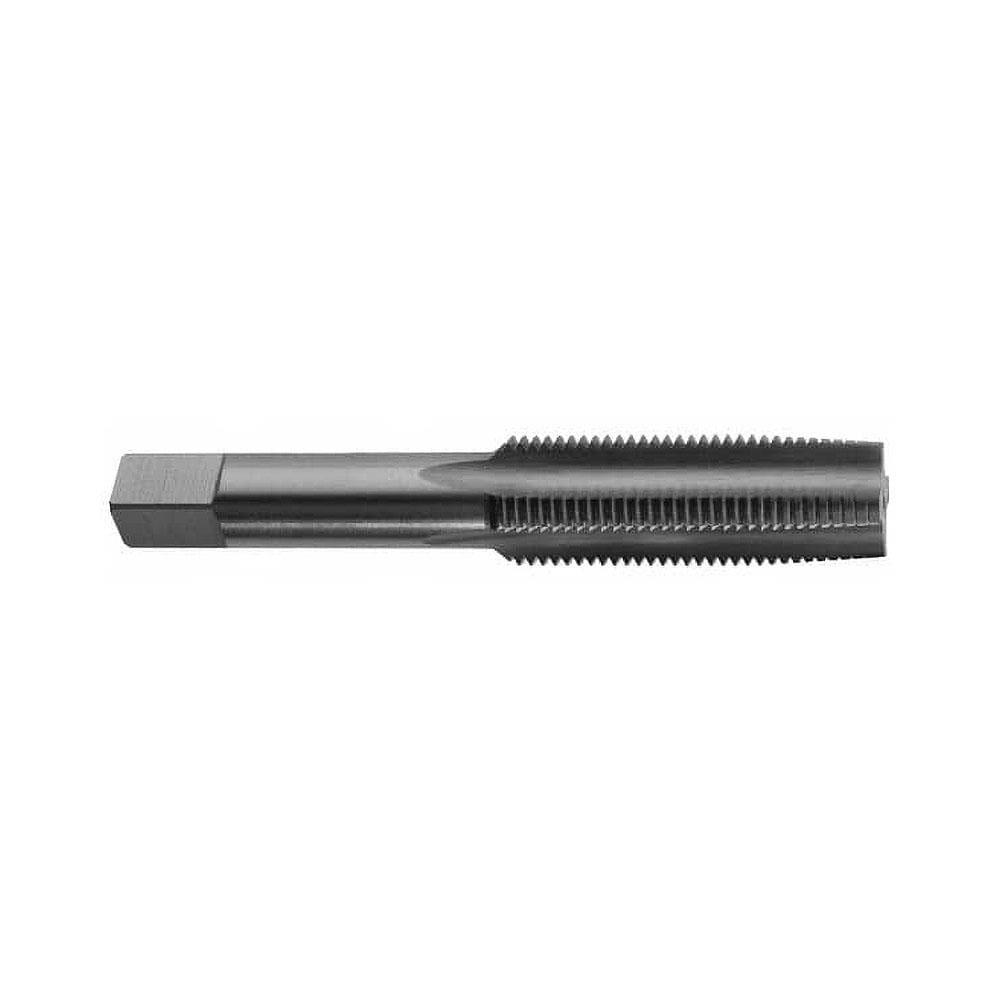

Plug Chamfer General Purpose Left Hand Tap
Specifications
| Overall Length (Metric) | 69.09 |
|---|---|
| Diameter (Metric) | 7.94 |
| Thread Size Decimal Equiv | 0.3125 |
| Flute Type | Straight |
| Thread Tolerance | 2B |
| Shank Size (Metric) | 8.08 |
| Operation Type | Blind Hole |
| Tap Blank Construction | USCTI Table 302A |
| Tap Construction | Left-Hand |
| Tap Ground Threads | Yes |
| Tap Neck Length | 0.45 |
| Thread Pitch | 24 |
| Tap Style | Straight Flute Hand Tap |
| Tap Type | Hand Tap |
| Thread Creation | Thread Cutting |
| Tap Interrupted Thread | No |
| Shank Square Length | 0.375 |
| Pack Qty | 1 |
| Double Ended | No |
| ECCN | EAR99 |
| Set | No |
| Tap Spiral Point | No |
| Tap Truncated Threads | No |
| UNSPSC | 27112806 |
| Diameter | 0.3125 |
| Shank Size | 0.318 |
| Surface Condition | Bright |
| Overall Length (Decimal Inch) | 2.72 |
| Overall Length (mm) | 6.909 cm |
| Tap Limit | H3 |
| Thread Length | 0.69 |
| Shank Configuration | Straight w/ Square |
| Thread Form | UNF |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.3125 |
| Application | General Purpose |
| Depth of Cut | 1.5 |
| Tool Size | 5/16-24 UNF |
