Cleveland
C61843

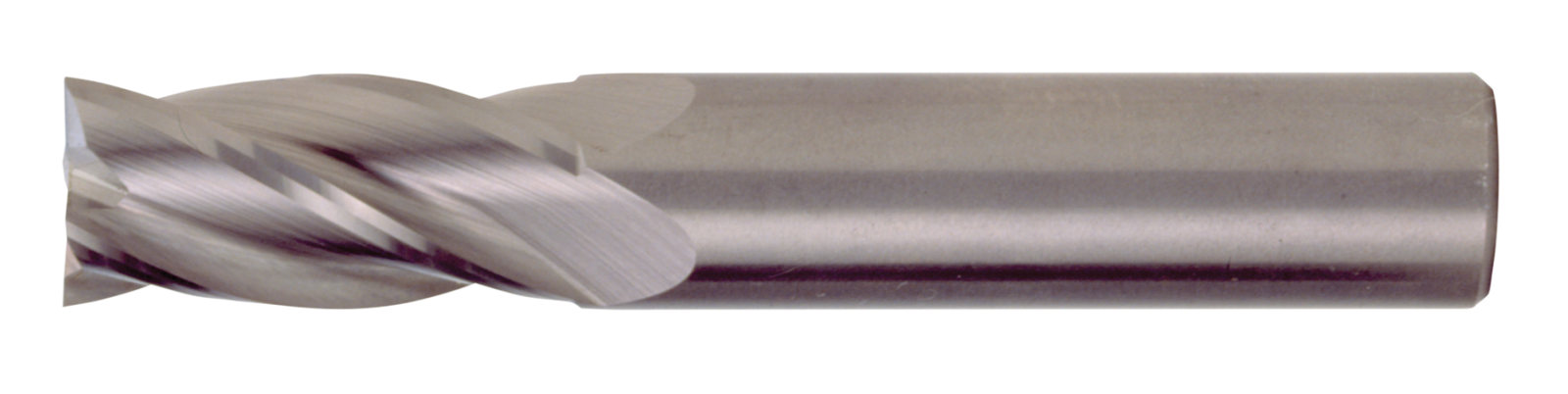

4-Flute Square Nose Single End General-Purpose End Mill
Specifications
| Overall Length (Metric) | 63.5 |
|---|---|
| Flute Type | Spiral |
| Material | Carbide |
| Double Ended | No |
| Diameter (Metric) | 5.16 |
| Shank Size (Metric) | 6.35 |
| Short Description | 4-Flute Square Nose Single End General-Purpose End Mill |
| Shank Size | 0.25 |
| Hand Of Spiral | Right |
| Mill Construction | General Purpose |
| Center Cutting | true |
| Mill End Style | Corner Radius |
| Tool Size | 13/64" x 1/4" x 5/8" x 2-1/2" |
| ECCN | EAR99 |
| Hand Of Spiral Cut | RHS / RHC |
| Pack Qty | 1 |
| Set | No |
| UNSPSC | 27112803 |
| Diameter | 0.2031 |
| Surface Condition | Bright |
| Overall Length (Decimal Inch) | 2.5 |
| Shank Configuration | Straight |
| Diameter (Decimal Inch) | 0.2031 |
