Cleveland
C70310

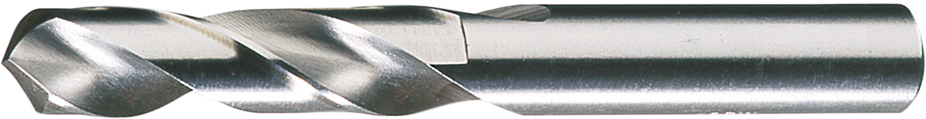

NAS907 Type C Heavy-Duty Screw Machine Drill
Specifications
| Overall Length (Metric) | 60.32 |
|---|---|
| Diameter (Metric) | 5.18 |
| Point Angle | 135 |
| Flute Length (Metric) | 31.75 |
| Material | HSS |
| Short Description | NAS907 Type C Heavy-Duty Screw Machine Drill |
| Shank Length (Inch) | 1.125 |
| Flute Length | 1.25 |
| Shank Type | Straight |
| Shank Size | 0.204 |
| Point Type | Split |
| Surface Condition | Bright |
| Diameter (Wire) | 6 |
| Notes | Sizes smaller than 0.0625 do not have split point |
| Flute Length (mm) | 3.175 cm |
| Drill Style | Screw Machine Drill |
| Double Ended | No |
| Shank Length | 1.125 |
| UNSPSC | 20111614 |
| Overall Length (mm) | 6.032 cm |
| Flute Type | Spiral |
| Shank Configuration | Straight |
| Point Style | Split |
| Pack Qty | 12 |
| Hand Of Spiral | Right |
| Shank Length (Metric) | 28.57 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.204 |
| Shank Length (mm) | 28.57 |
| Shank Size (Metric) | 5.18 |
| Diameter | 0.204 |
| Set | No |
| Drill Size System | Wire |
| Drill Construction | NAS 907 TYPE C |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Point Angle | 135 |
| Tool Size | #6 |
| ECCN | EAR99 |
