Cleveland
C72011

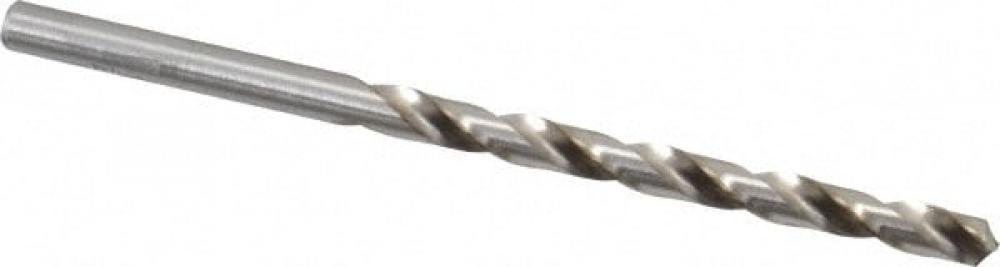

CLE-MAX? Jobber Drill
Specifications
| Overall Length (Metric) | 82.55 |
|---|---|
| Material | HSS-E |
| Diameter (Metric) | 4.37 |
| Point Type | Radial |
| Shank Size (Metric) | 4.37 |
| Point Angle | 118 |
| Shank Length (Metric) | 28.57 |
| Diameter | 0.171875 |
| Flute Length | 2.125 |
| Flute Type | Spiral |
| Shank Size | 0.1719 |
| Shank Type | Straight |
| Flute Length (Metric) | 53.97 |
| Helix Angle | 32 |
| Drill Construction | General Purpose |
| Hand Of Spiral | Right |
| Standard | ASME B94.11M |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | 11/64" |
| Drill Style | Jobber Drill |
| Measurement System | Imperial |
| Drill Size System | Fractional |
| Pack Qty | 12 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Shank Length (Inch) | 1.125 |
| Surface Condition | Bright |
| Flute Length (mm) | 5.397 cm |
| Overall Length (Decimal Inch) | 3.25 |
| Overall Length (mm) | 8.255 cm |
| Shank Configuration | Straight |
| Point Style | Radial |
| Diameter (Decimal Inch) | 0.1719 |
| Shank Length (mm) | 28.57 |
| Set | No |
| Standards | ASME B94.11M |
| Depth of Cut | 4 |
