Cleveland
C72012

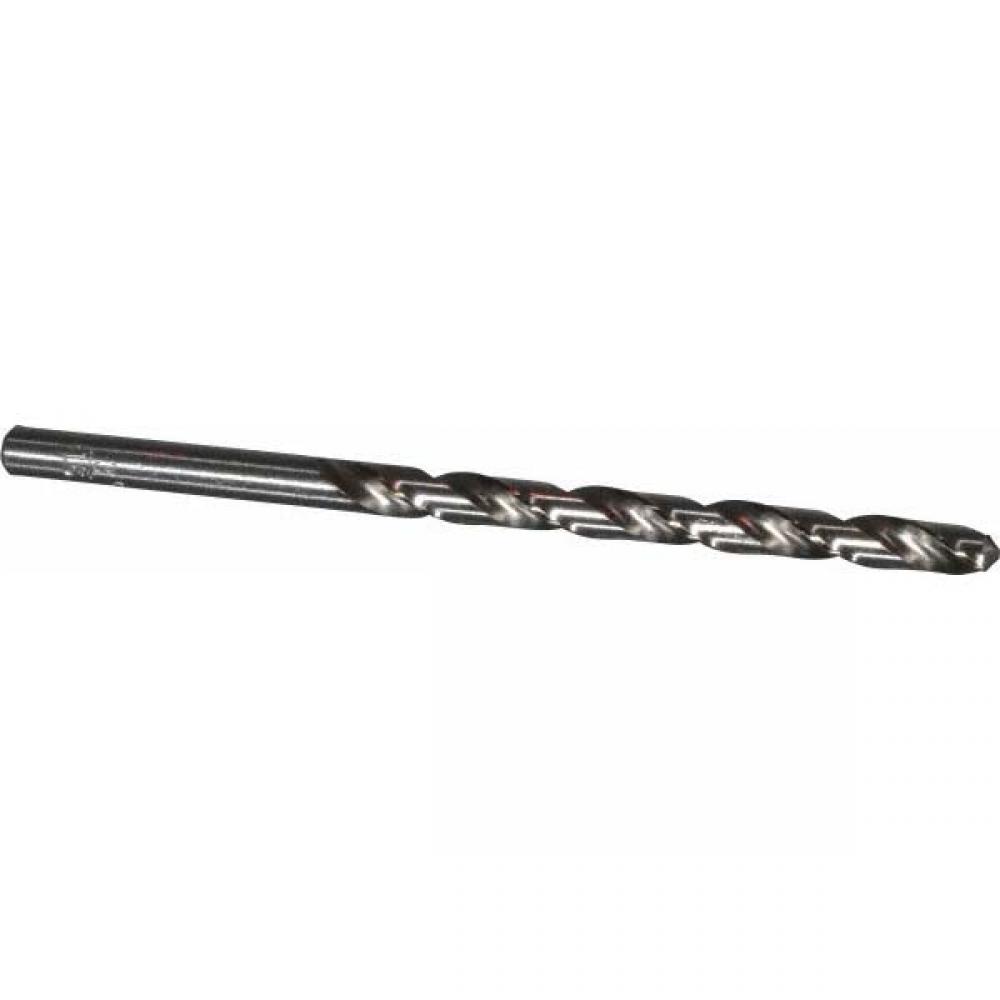

CLE-MAX? Jobber Drill
Specifications
| Overall Length (Metric) | 88.9 |
|---|---|
| Material | HSS-E |
| Diameter (Metric) | 4.76 |
| Point Type | Radial |
| Shank Size (Metric) | 4.76 |
| Point Angle | 118 |
| Shank Length (Metric) | 30.16 |
| Diameter | 0.1875 |
| Flute Length | 2.3125 |
| Flute Type | Spiral |
| Shank Size | 0.1875 |
| Shank Type | Straight |
| Flute Length (Metric) | 58.74 |
| Helix Angle | 32 |
| Drill Construction | General Purpose |
| Hand Of Spiral | Right |
| Standard | ASME B94.11M |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | 3/16" |
| Drill Style | Jobber Drill |
| Measurement System | Imperial |
| Drill Size System | Fractional |
| Pack Qty | 12 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Shank Length (Inch) | 1.1875 |
| Surface Condition | Bright |
| Flute Length (mm) | 5.874 cm |
| Overall Length (Decimal Inch) | 3.5 |
| Overall Length (mm) | 8.89 cm |
| Shank Configuration | Straight |
| Point Style | Radial |
| Diameter (Decimal Inch) | 0.1875 |
| Shank Length (mm) | 30.16 |
| Set | No |
| Standards | ASME B94.11M |
| Depth of Cut | 4 |
