Cleveland
C72025

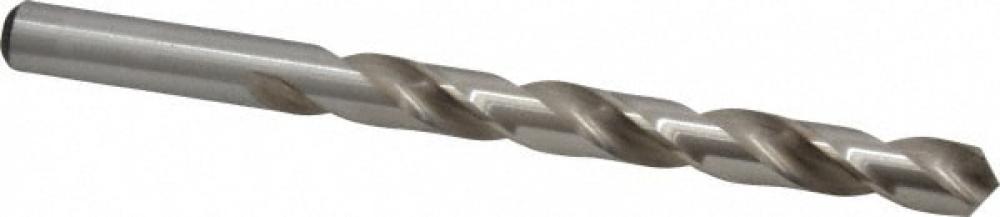

CLE-MAX? Jobber Drill
Specifications
| Overall Length (Metric) | 130.17 |
|---|---|
| Material | HSS-E |
| Diameter (Metric) | 9.92 |
| Point Type | Radial |
| Shank Size (Metric) | 9.92 |
| Point Angle | 118 |
| Shank Length (Metric) | 34.92 |
| Diameter | 0.390625 |
| Flute Length | 3.75 |
| Flute Type | Spiral |
| Shank Size | 0.3906 |
| Shank Type | Straight |
| Flute Length (Metric) | 95.25 |
| Helix Angle | 32 |
| Drill Construction | General Purpose |
| Hand Of Spiral | Right |
| Standard | ASME B94.11M |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | 25/64" |
| Drill Style | Jobber Drill |
| Measurement System | Imperial |
| Drill Size System | Fractional |
| Pack Qty | 6 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Shank Length (Inch) | 1.375 |
| Surface Condition | Bright |
| Flute Length (mm) | 9.525 cm |
| Overall Length (Decimal Inch) | 5.125 |
| Overall Length (mm) | 13.017 cm |
| Shank Configuration | Straight |
| Point Style | Radial |
| Diameter (Decimal Inch) | 0.3906 |
| Shank Length (mm) | 34.92 |
| Set | No |
| Standards | ASME B94.11M |
| Depth of Cut | 4 |
