Cleveland
C76102

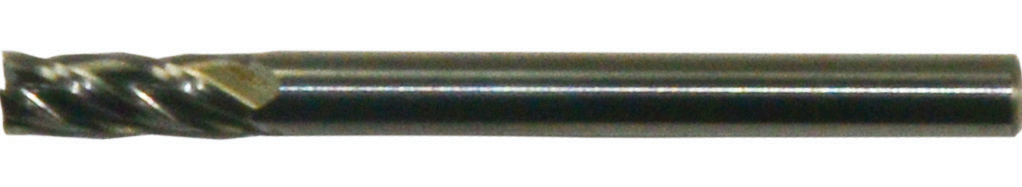

4-Flute Mini Solid Carbide End Mill
Specifications
| Overall Length (Metric) | 38.1 |
|---|---|
| Flute Type | Spiral |
| Material | Carbide |
| Double Ended | No |
| Diameter (Metric) | 4.5 |
| Shank Size (Metric) | 3.17 |
| Short Description | 4-Flute Mini Solid Carbide End Mill |
| Shank Size | 0.125 |
| Hand Of Spiral | Right |
| Mill Construction | Mini Solid |
| Center Cutting | true |
| Mill End Style | Square |
| Tool Size | 4.5mm x 3/16" x 0.5316" x 2" |
| ECCN | EAR99 |
| Hand Of Spiral Cut | RHS / RHC |
| Pack Qty | 1 |
| Set | No |
| UNSPSC | 27112803 |
| Diameter | 0.1772 |
| Surface Condition | Bright |
| Overall Length (Decimal Inch) | 1.5 |
| Shank Configuration | Straight |
| Measurement System | Metric |
| Diameter (Decimal Inch) | 0.1772 |
