Cleveland
C95055

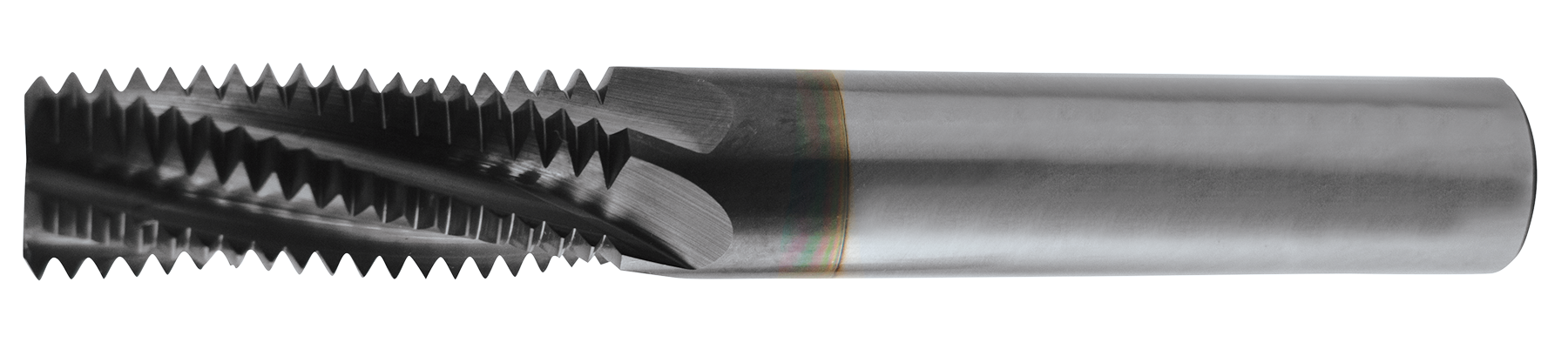

NPT Coolant-Thru Thread Mill
Specifications
| Overall Length (Metric) | 127 |
|---|---|
| Shank Size (Metric) | 19.05 |
| Diameter (Metric) | 15.75 |
| Short Description | NPT Coolant-Thru Thread Mill |
| Thread Pitch | 11.5 |
| Mill Construction | NPT Coolant Through |
| Shank Size | 0.75 |
| Surface Condition | TiAlN |
| Double Ended | No |
| UNSPSC | 23291800 |
| Overall Length (mm) | 12.7 cm |
| Shank Configuration | Straight |
| Thread Form | NPT / NPTF |
| Pack Qty | 1 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.62 |
| Diameter | 0.62 |
| Set | No |
| Thread Size Decimal Equiv | 1 |
| Tool Size | 1-11.5 NPT / NPTF |
| ECCN | EAR99 |
