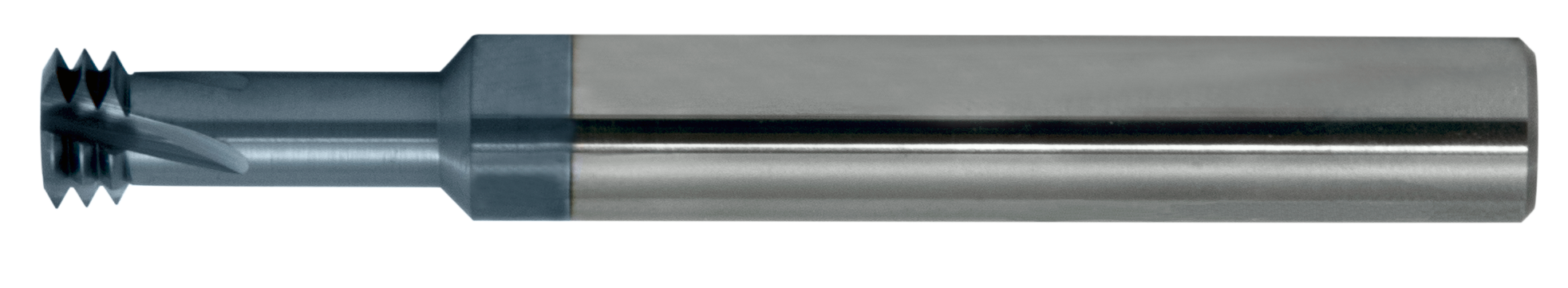

Cleveland
C95140
UN Thread Mill
Specifications
| Overall Length (Metric) | 63.5 |
|---|---|
| Shank Size (Metric) | 6.35 |
| Diameter (Metric) | 1.52 |
| Short Description | UN Thread Mill |
| Thread Pitch | 0.4 |
| Mill Construction | Solid |
| Shank Size | 0.25 |
| Surface Condition | AlCrN |
| Notes | Cut Depth/Length of Cut of l is less than or equal to 3*Diameter |
| UNSPSC | 23291800 |
| Overall Length (mm) | 6.35 cm |
| Shank Configuration | Straight |
| Thread Form | Metric |
| Pack Qty | 1 |
| Measurement System | Metric |
| Diameter (Decimal Inch) | 0.06 |
| Diameter | 0.06 |
| Set | No |
| Thread Tolerance | 6H |
| Tool Size | M2x0.4 |
| ECCN | EAR99 |
