Cleveland
C96142

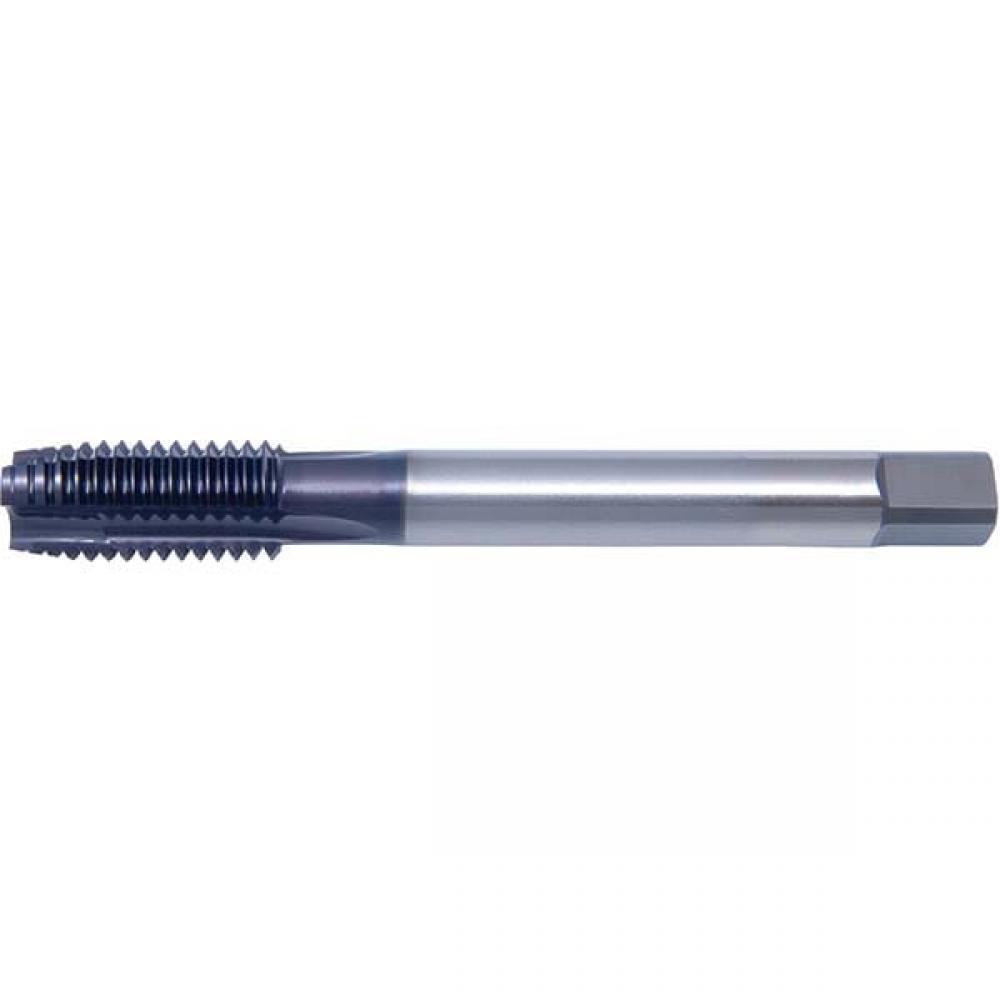

HP Spiral Point Universal Tap
Specifications
| Diameter (Metric) | 10 |
|---|---|
| Overall Length (Metric) | 100 |
| Thread Tolerance | 6H |
| Diameter | 0.3937 |
| Flute Type | Straight |
| Shank Size (Metric) | 9.68 |
| Operation Type | Thru Hole |
| Standard | DIN/ASME |
| Tap Blank Construction | DIN/ANSI |
| Tap Ground Threads | Yes |
| Tap Neck Length | 0.827 |
| Tap Spiral Point | Yes |
| Thread Pitch | 1.25 |
| Thread Size Decimal Equiv | 0.3937 |
| Tap Style | Spiral Point Tap |
| Square Size (Decimal Inch) | 0.44 |
| Tap Interrupted Thread | No |
| Tap Truncated Threads | No |
| Tap Type | Machine Tap |
| Thread Creation | Thread Cutting |
| ECCN | EAR99 |
| Shank Configuration | Straight w/ Square |
| Pack Qty | 1 |
| Net Weight | 59.742 |
| Set | No |
| UNSPSC | 27112806 |
| Shank Size | 0.381 |
| Surface Condition | Steam Oxide |
| Overall Length (Decimal Inch) | 3.937 |
| Overall Length (mm) | 10 cm |
| Shank Square Length | 0.44 |
| Thread Length | 1.575 |
| Thread Form | Metric Fine |
| Measurement System | Metric |
| Diameter (Decimal Inch) | 0.3937 |
| Depth of Cut | 3 |
| Tool Size | M10x1.25 |
