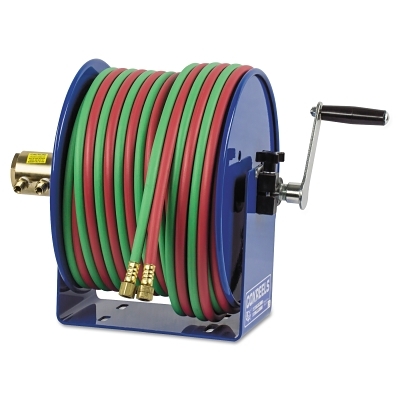

Coxreels
112W150
170-112W-1-50
Specifications
| Base Item Number | Coxreels® 100W Series Welding Hand Crank Twin Line Hose Reels |
|---|---|
| Bearing Type | Composite |
| Brand | Coxreels® |
| Classification | Welding Cable & Hose Reels |
| Includes | Hand Crank Hose Reel; Oxygen-Acetylene Twin Line Welding Hose; Welding Hose Fittings |
| Long Description | Compact solid one piece, heavy gauge steel U-shaped frame with open drum design|External 90° full-flow dual ported brass swivel offering both connections from the same side of the reel|Durable proprietary CPC™ powder coat process|Rolled edges and ribbed discs provide strength and safety|Composite bearing for smooth rotation |
| Nominal Height | 13 in |
| Nominal Length | 12 in |
| Nominal Pressure | 200 psi |
| Nominal Width | 15-1/2 in Overall |
| Short Description | 100W Series Welding Hand Crank Twin Line Hose Reel, 50 ft Hose with Fittings, Oxygen-Acetylene |
| Type | 100W Series Hand Crank Twin Line Welding Hose Reel with Hose |
| UNSPSC | 0 |
| Hose Length | 50 ft |
| Hazmat | N |
| Nominal Hose I.D. | 1/4 in |
| Prop 65 Warning Message | WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and Chromium which is know to the State of California to cause birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Thread - TPI or Pitch | 9/16 in-18 UNF |
