Dixon Valve
4FS4

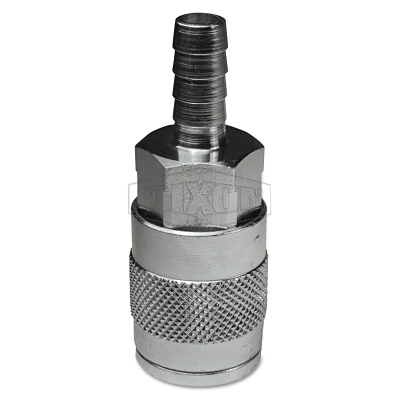

Dixon Valve DQC F-Series Industrial Manual Coupler Standard Hose Barb
Specifications
| Classification | Air Hose Fittings |
|---|---|
| Connection Type | Hose Barb |
| Long Description | Designed for use with DQC J-series automotive plugs|Machined components are made using solid bar stock|Stainless steel balls, retaining rings and springs maximize corrosion resistance|Standard nitrile (Buna-N) seals|Includes steel sleeve and valve |
| Material | Steel |
| Short Description | DQC F-Series Industrial Manual Coupler Standard Hose Barb, 1/2 in, Steel |
| Type | Coupler |
| ORS Nasco SKU Number | 238-4FS4 |
| Fitting Size | 1/2 in |
| Body Material | Steel |
| Measuring System | Inch |
| Hazmat | N |
| Fitting Type | Quick Coupler Body |
| Shape | Socket |
| Nominal Diameter | 1/2 in |
| Max Operating Pressure | 500 psi |
| Prop 65 Warning Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Nominal Height | 3-1/2 in |
| Application | On End of Hose or Pipe |
| Nominal Length | 3-1/2 in |
| Finish | Stainless Steel |
