Dixon Valve
AM2

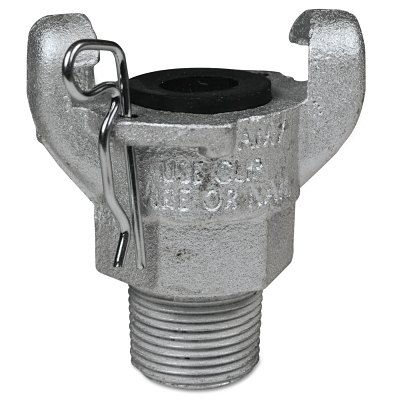

Dixon Valve Air King 2-Lug NPT Ends
Specifications
| Classification | Air Hose Fittings |
|---|---|
| Connection Type | NPT |
| Includes | Rubber Washer (AWR4); Safety Clip |
| Long Description | Safety clip included|Supplied with rubber washer (AWR4)|Brass, brass (global investment cast), iron, or 316 stainless steel construction|Pressure rating of 150 psi at ambient temperature 70 F| |
| Prop 65 Warning Label | Y |
| Short Description | Air King 2-Lug NPT End, 1/2 in (NPT) M, 1-1/8 in dia x 2-1/2 in W x 2-11/16 in H, Iron |
| Type | 2-Lug Male NPT End |
| ORS Nasco SKU Number | 238-AM2 |
| Body Material | Iron |
| Measuring System | Inch |
| Hazmat | N |
| Nominal Width | 2-1/2 in |
| Nominal Diameter | 1-1/8 in |
| Max Operating Pressure | 150 psi |
| Prop 65 Warning Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Nominal Height | 2-11/16 in |
| Prop 65 Warning Required | Y |
| Country of Origin | US |
