Dormer.Pramet
23035

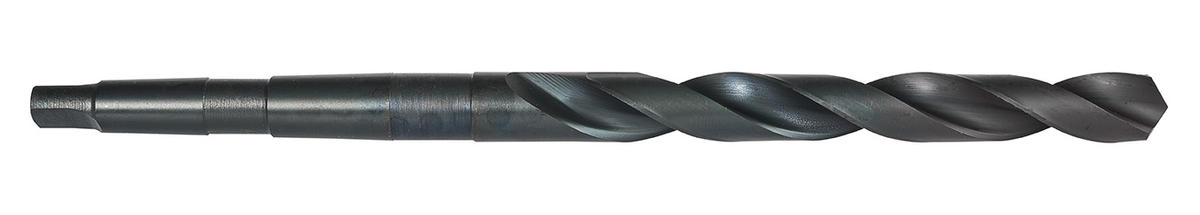

S209 Taper Shank Drill
Specifications
| Material | HSS |
|---|---|
| Flute Length (Inch) | 4-7/8 |
| Coating/Finish | Steam Tempered |
| Short Description | S209 HSS Steam Oxide 118D TPR Shank JL Drill 35/64 inch |
| Drill Point Angle | 118 |
| Series | S209 |
| Material Application Priority Usage | P - Steel and cast steel |
| UNSPSC Number | 23241614 |
| Item Width (Inches) | 0.87 |
| Hand (Cutting Direction) | Right |
| Overall Length (Decimal Inch) | 8.27 |
| Item Weight (lbs) | 0.02 |
| Item Height (Inches) | 0.87 |
| GTIN | 00860712303550 |
| Item Length (Inches) | 8.27 |
| Material Application Possible Usage | K - Cast iron, M - Stainless steel, N - Non-ferrous metals, S - High-temperature alloys |
| Length Type | Jobber |
| Overall Length - Fractional Inch (OAL) | 8-1/4 |
| Coolant Type | External cooling supply |
| Specification | ANSI |
