Dormer.Pramet
23162

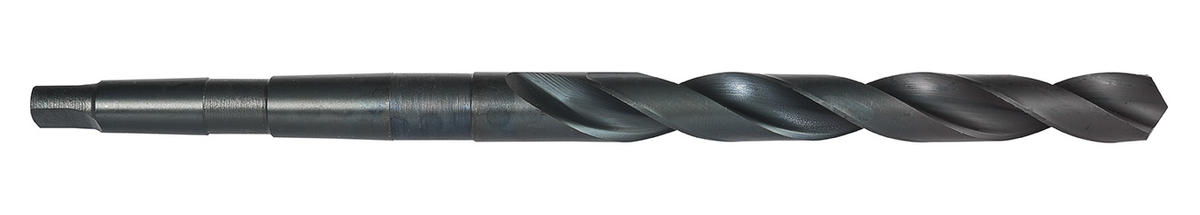

S209 Taper Shank Drill
Specifications
| Material | HSS |
|---|---|
| Flute Length (Inch) | 10-5/8 |
| Coating/Finish | Steam Tempered |
| Short Description | S209 HSS Steam Oxide 118D TPR Shank JL Drill 1.31/32 inch |
| Drill Point Angle | 118 |
| Series | S209 |
| Material Application Priority Usage | P - Steel and cast steel |
| UNSPSC Number | 23241614 |
| Item Width (Inches) | 2.44 |
| Hand (Cutting Direction) | Right |
| Overall Length (Decimal Inch) | 17.24 |
| Item Weight (lbs) | 7.36 |
| Item Height (Inches) | 2.2 |
| GTIN | 00860712316284 |
| Item Length (Inches) | 17.24 |
| Material Application Possible Usage | K - Cast iron, M - Stainless steel, N - Non-ferrous metals, S - High-temperature alloys |
| Length Type | Jobber |
| Overall Length - Fractional Inch (OAL) | 16-5/8 |
| Coolant Type | External cooling supply |
| Specification | ANSI |
