Dormer.Pramet
26122

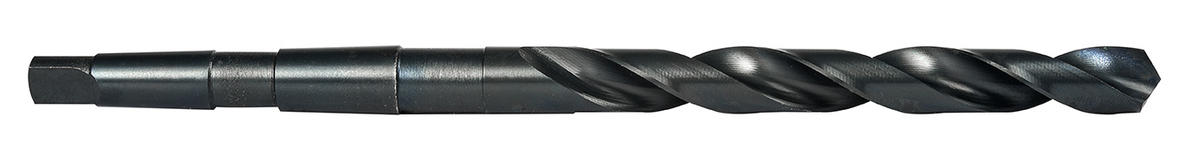

5ATS Taper Shank Drill
Specifications
| Material | HSS |
|---|---|
| Coating/Finish | Steam Tempered |
| Short Description | 5ATS HSS Steam Oxide 118D Taper Shank JL Drill 12.20 mm |
| Series | 5ATS |
| Material Application Priority Usage | P - Steel and cast steel |
| UNSPSC Number | 23291800 |
| Item Width (Inches) | 7.17 |
| Hand (Cutting Direction) | Right |
| Overall Length - Millimeter (OAL) | 182 |
| Item Weight (lbs) | 0.26 |
| Item Height (Inches) | 0.71 |
| Item Length (Inches) | 0.71 |
| Material Application Possible Usage | K - Cast iron, M - Stainless steel, N - Non-ferrous metals, S - High-temperature alloys |
| Length Type | Jobber |
| Coolant Type | External cooling supply |
| Specification | DIN 345 |
