Dormer.Pramet
346518

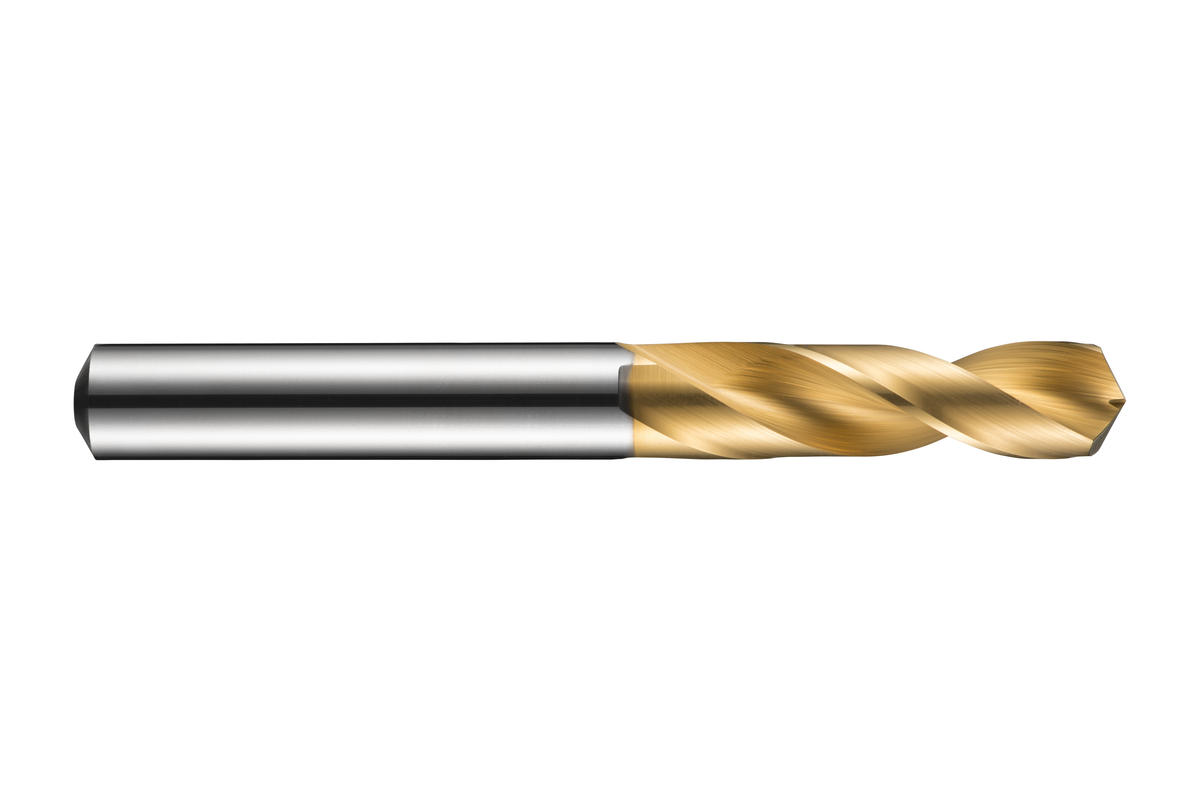

CDX Stub Drill
Specifications
| Coating/Finish | TiN |
|---|---|
| Material | HM |
| Short Description | R520 HM TiN CDX 130DStub Drill 8.60 mm |
| Material Application Priority Usage | K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel |
| UNSPSC Number | 23241614 |
| Item Width (Inches) | 3.44 |
| Hand (Cutting Direction) | Right |
| Overall Length - Millimeter (OAL) | 84 |
| Item Weight (lbs) | 0.13 |
| Item Height (Inches) | 0.67 |
| Item Length (Inches) | 0.68 |
| Material Application Possible Usage | H - Hardened materials, M - Stainless steel, S - High-temperature alloys |
| Length Type | Short |
| Series | R520 |
| Coolant Type | External cooling supply |
| Specification | DIN 6539 |
