Dormer.Pramet
40036

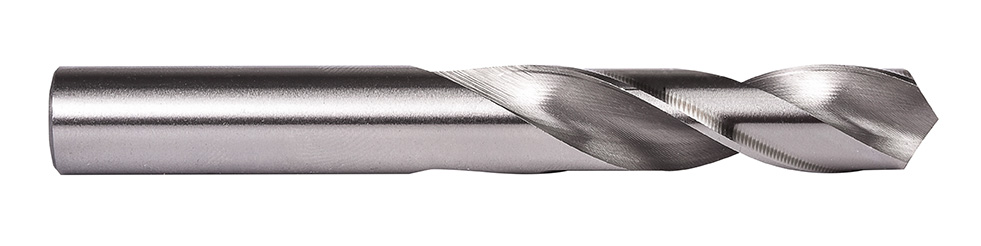

R40 Stub Drill
Specifications
| Coating/Finish | Bright |
|---|---|
| Material | HSS |
| Short Description | R40 HSS BRT 118D Stub Drill Short ANSI 9/16 inch |
| Material Application Priority Usage | K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel |
| UNSPSC Number | 23241614 |
| Item Width (Inches) | 4.8 |
| Hand (Cutting Direction) | Right |
| Overall Length (Decimal Inch) | 0.94 |
| Item Weight (lbs) | 0.23 |
| Item Height (Inches) | 0.94 |
| GTIN | 00860714003694 |
| Item Length (Inches) | 0.94 |
| Material Application Possible Usage | M - Stainless steel, S - High-temperature alloys |
| Length Type | Short |
| Series | R40 |
| Overall Length - Fractional Inch (OAL) | 4 |
| Coolant Type | External cooling supply |
| Specification | ANSI |
| Drill Point Angle | 118 |
