Dormer.Pramet
40823

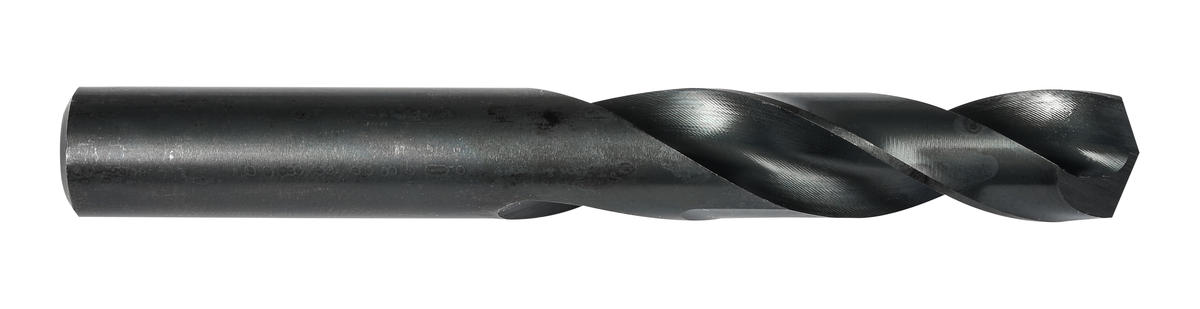

R40C Stub Drill
Specifications
| Coating/Finish | Steam Tempered |
|---|---|
| Material | HSS |
| Short Description | R40C HSS Steam Oxide 135D NAS907C 23/64 inch |
| Material Application Priority Usage | K - Cast iron, P - Steel and cast steel |
| UNSPSC Number | 23241614 |
| Item Width (Inches) | 3.15 |
| Hand (Cutting Direction) | Right |
| Overall Length (Decimal Inch) | 0.39 |
| Item Weight (lbs) | 0.07 |
| Item Height (Inches) | 0.39 |
| GTIN | 00860714082354 |
| Item Length (Inches) | 0.39 |
| Material Application Possible Usage | M - Stainless steel, N - Non-ferrous metals, S - High-temperature alloys |
| Length Type | Short |
| Series | R40C |
| Overall Length - Fractional Inch (OAL) | 3-1/16 |
| Coolant Type | External cooling supply |
| Specification | NAS907 |
| Drill Point Angle | 135 |
