Dormer.Pramet
58110

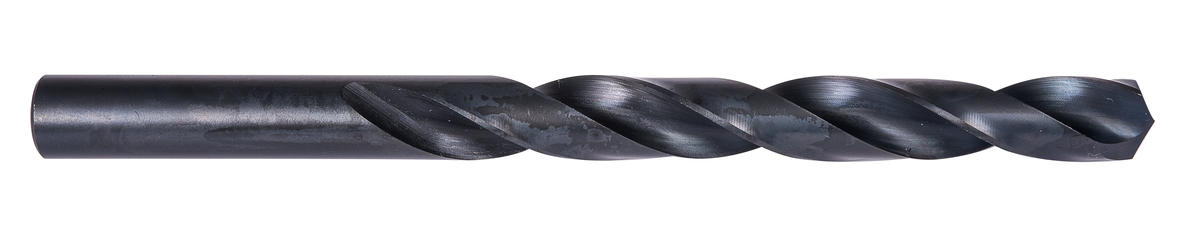

501-6 Aircraft Extension Drill
Specifications
| Material | HSS |
|---|---|
| Short Description | 501-6 HSS Steam Oxide 135D NAS907B L Drill N10 N10 |
| Coating/Finish | Steam Tempered |
| Material Application Priority Usage | K - Cast iron, M - Stainless steel, P - Steel and cast steel |
| UNSPSC Number | 23241600 |
| Item Width (Inches) | 6.06 |
| Hand (Cutting Direction) | Right |
| Item Weight (lbs) | 0.04 |
| Item Height (Inches) | 0.25 |
| Item Length (Inches) | 0.39 |
| Material Application Possible Usage | N - Non-ferrous metals, S - High-temperature alloys |
| Length Type | Long |
| Series | 501-6 |
| Overall Length - Fractional Inch (OAL) | 6 |
| Coolant Type | External cooling supply |
| Specification | NAS907 |
