Dormer.Pramet
60010

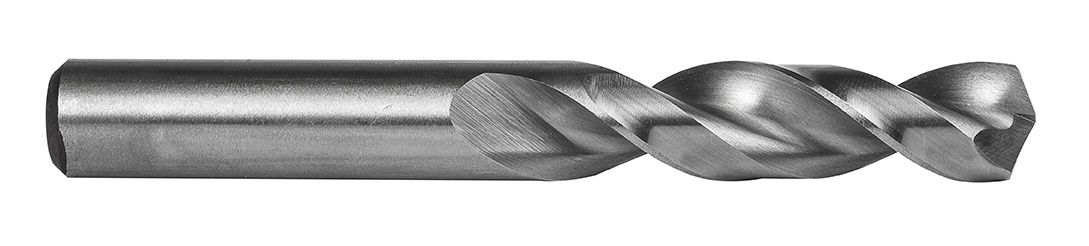

QC41P Stub Drill
Specifications
| Coating/Finish | Bright |
|---|---|
| Material | HSS |
| Short Description | QC41P HSS BRT QC 135D Stub Drill Short ANSI N10 N10 |
| Material Application Priority Usage | N - Non-ferrous metals, P - Steel and cast steel |
| UNSPSC Number | 23241614 |
| Item Width (Inches) | 2.36 |
| Hand (Cutting Direction) | Right |
| Overall Length (Decimal Inch) | 0.39 |
| Item Weight (lbs) | 0.01 |
| Item Height (Inches) | 0.25 |
| GTIN | 00860716001032 |
| Item Length (Inches) | 0.39 |
| Material Application Possible Usage | K - Cast iron, M - Stainless steel, S - High-temperature alloys |
| Length Type | Short |
| Series | QC41P |
| Overall Length - Fractional Inch (OAL) | 2-1/4 |
| Coolant Type | External cooling supply |
| Specification | ANSI |
| Drill Point Angle | 135 |
