Dormer.Pramet
61402

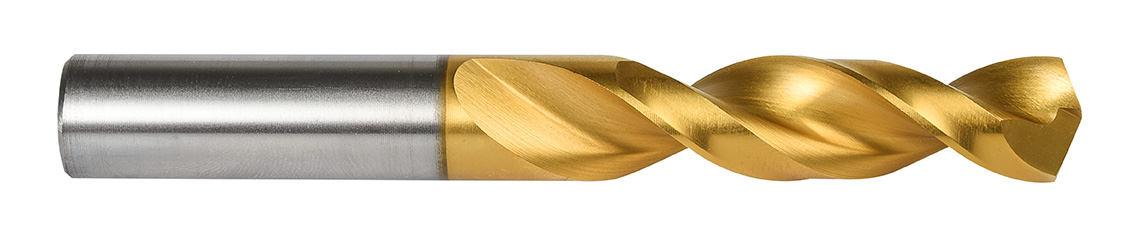

QC41G Stub Drill
Specifications
| Coating/Finish | TiN |
|---|---|
| Material | HSS |
| Short Description | QC41G HSS TiN QC 135D Stub Drill Short ANSI N2 N2 |
| Material Application Priority Usage | N - Non-ferrous metals, P - Steel and cast steel |
| UNSPSC Number | 23241614 |
| Item Width (Inches) | 2.52 |
| Hand (Cutting Direction) | Right |
| Overall Length (Decimal Inch) | 0.39 |
| Item Weight (lbs) | 0.02 |
| Item Height (Inches) | 0.25 |
| GTIN | 00860716140250 |
| Item Length (Inches) | 0.39 |
| Material Application Possible Usage | K - Cast iron, M - Stainless steel |
| Length Type | Short |
| Series | QC41G |
| Overall Length - Fractional Inch (OAL) | 2-7/16 |
| Coolant Type | External cooling supply |
| Specification | ANSI |
| Drill Point Angle | 135 |
