Dormer.Pramet
73582

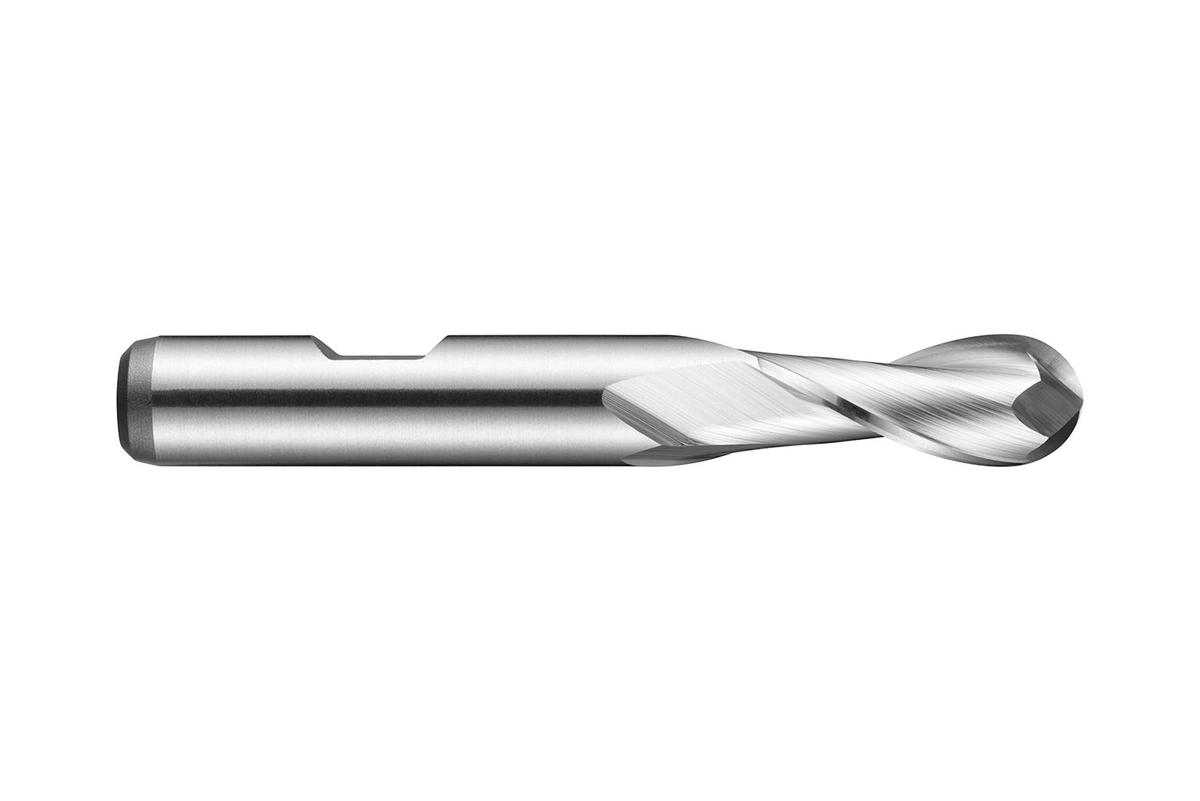

Ball-Nosed End Mill
Specifications
| Coating/Finish | Bright |
|---|---|
| Material | HSS-E |
| Short Description | C505 HSS-E BRT DIN 1835 B Shank Ball-Nosed End Mill 22.00 mm |
| Series | C505 |
| UNSPSC Number | 27112803 |
| Flute Count (NOF) | 2 |
| Item Width (Inches) | 4.22 |
| Overall Length - Millimeter (OAL) | 104 |
| Item Weight (lbs) | 0.46 |
| Item Height (Inches) | 0.99 |
| Item Length (Inches) | 0.99 |
| Material Application Possible Usage | K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys |
| Coolant Type | External cooling supply |
| Specification | DIN 844 K |
