Dormer.Pramet
87960

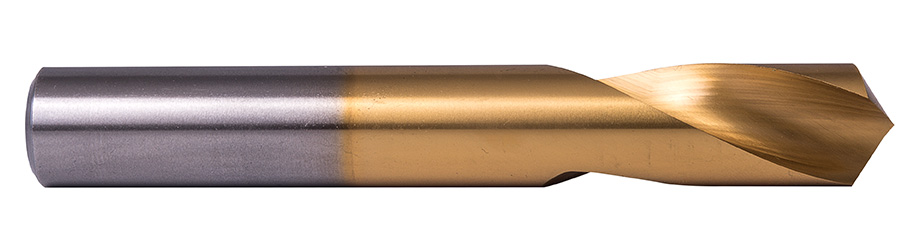

SPSG-120 Short Spotting Drill
Specifications
| Drill Point Angle | 120 |
|---|---|
| Coating/Finish | TiN |
| Material | HSS |
| Short Description | SPSG-120 HSS TiN 120D Spotting Drill Short 3/4 inch |
| UNSPSC Number | 23241600 |
| Item Width (Inches) | 5.2 |
| Hand (Cutting Direction) | Right |
| Overall Length (Decimal Inch) | 0.39 |
| Item Weight (lbs) | 0.57 |
| Item Height (Inches) | 0.39 |
| GTIN | 00860718796080 |
| Item Length (Inches) | 0.39 |
| Material Application Possible Usage | K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys |
| Length Type | Short |
| Series | SPSG-120 |
| Overall Length - Fractional Inch (OAL) | 5 |
| Coolant Type | External cooling supply |
| Specification | Precision |
