duMONT
10022*

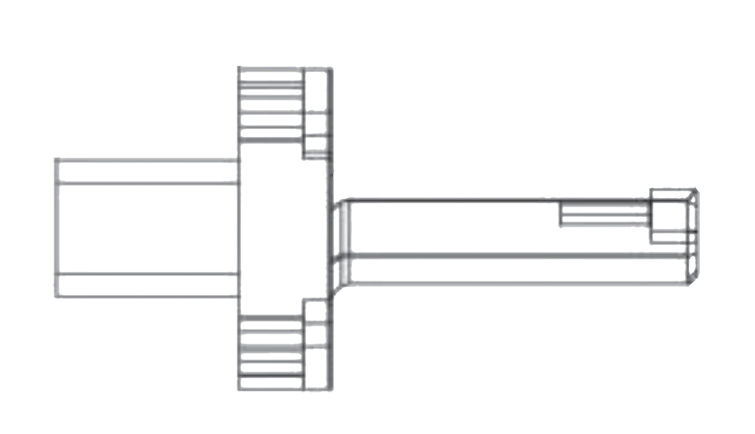

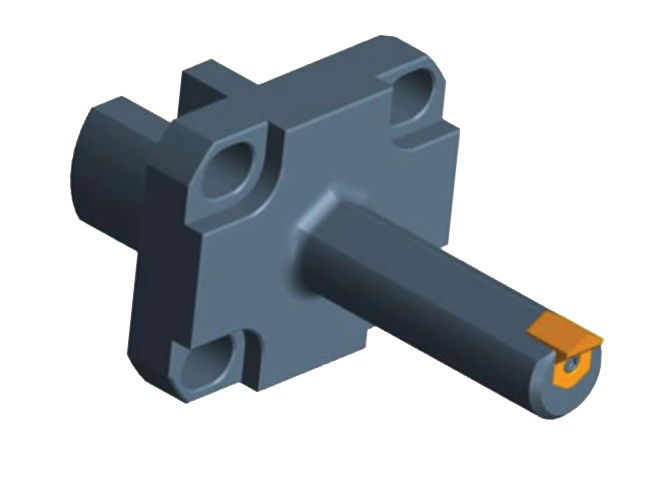

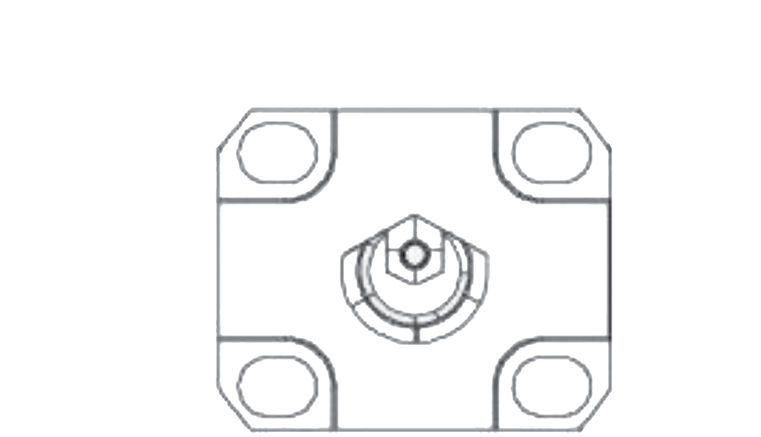

MH 35 Hexagon Series Insert Holder
37/45-35
Specifications
| Brand | duMONT CNC |
|---|---|
| Centering Plate | CP-4 |
| D1 (mm) | 28 |
| L1 (mm) | 46 |
| L2 (mm) | 79 |
| l3 (mm) | 13 |
| L4 (mm) | 20 |
| L5 (mm) | 43 |
| L6 (mm) | 35 |
| Long Description | CNC lathes, MH hexagon, insert holder, keyway seating compatible, customizable, MH 35 series |
| Minimum Hole (mm) | 30 |
| Mounting Screw | MS-3 |
| Short Description | duMONT CNC | MH 35 Hexagon Series Insert Holder | 37/45-35 |
| Stem Diameter (Metric) | 35 |
| Type | Industrial Supplies |
| Website | https://pilotprecision.com/indexable-broaching-system/ |
| Weight | 0.27 |
| Page | 52 |
| PPP Line ID | 235 |
