duMONT
77708

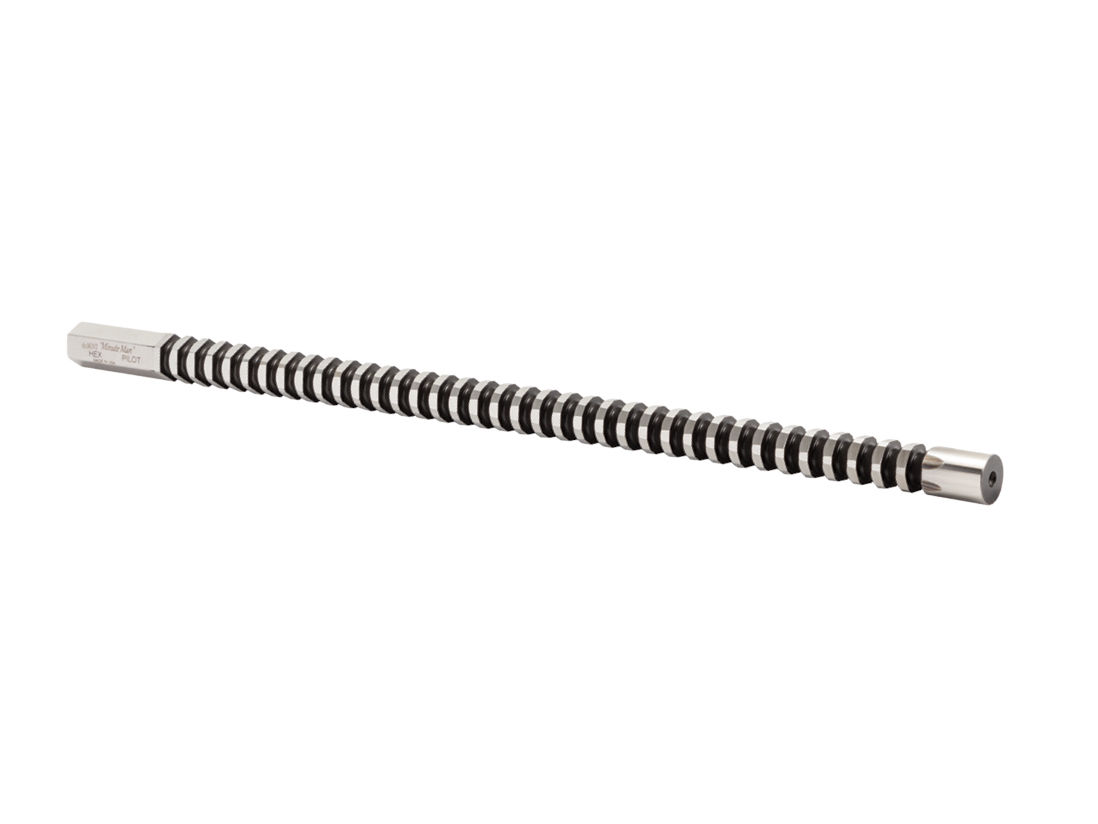

Hexagon Push Broaches
Specifications
| Brand | duMONT |
|---|---|
| Broach Length | 7-3/4 |
| Dimension Across Corners | .3950 – .3970 |
| Drill Size Included | 11/32 |
| Hex Size (Inch) | 0.34375 |
| Long Description | hexagon push broach, hexagon broach, american standard, inch, TiN coating available, TiAIN coating available |
| Notes | Inch |
| Short Description | duMONT | Stock Hexagon Broaches | 11/32 |
| Tooth Pitch | 7/32 |
| Type | Industrial Supplies |
| Website | https://pilotprecision.com/keyway-broaches/ |
| Page | 20 |
| PPP Line ID | 1297 |
