duMONT
99403C*
Inserts (mm) Tolerances
Specifications
| Brand | duMONT CNC |
|---|---|
| H-7 (Standard) L1 (high) | 0.158 |
| H-7 (Standard) L1 (low) | 0.15767 |
| l3 (mm) | 7 |
| L4 (mm) | 5 |
| L5 (mm) | 8 |
| L6 (mm) | 2.07 |

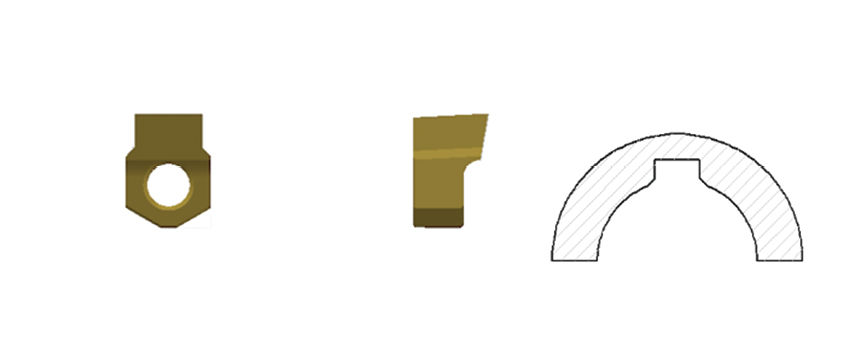

| Long Description | Broaching insert, slotting insert, sintered steel alloy, 13% cobalt content, 72 HRC hardness, TiN coated, Chamfer Feature, Tapered Bore keyway, Square keyway, hexagon keyway, involute internal gears, customizable corner radius |
| Sharpen Stem | SS-1 |
| Short Description | duMONT CNC | Inserts (mm) - Tolerances | 4 | 45° Chamfer |
| Tool Holder Size | 4 |
| Type | Industrial Supplies |
| Website | https://pilotprecision.com/indexable-broaching-system/ |
| Page | 43 |
| PPP Line ID | 46 |
