duMONT
99624

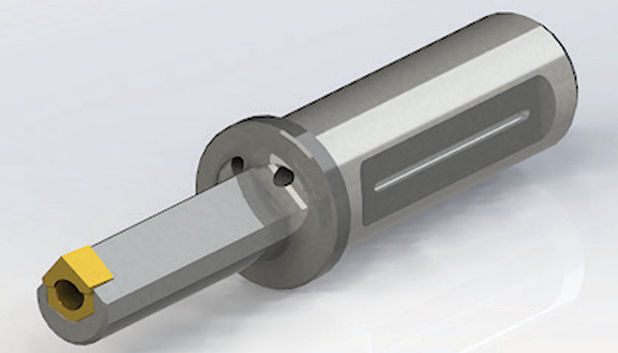

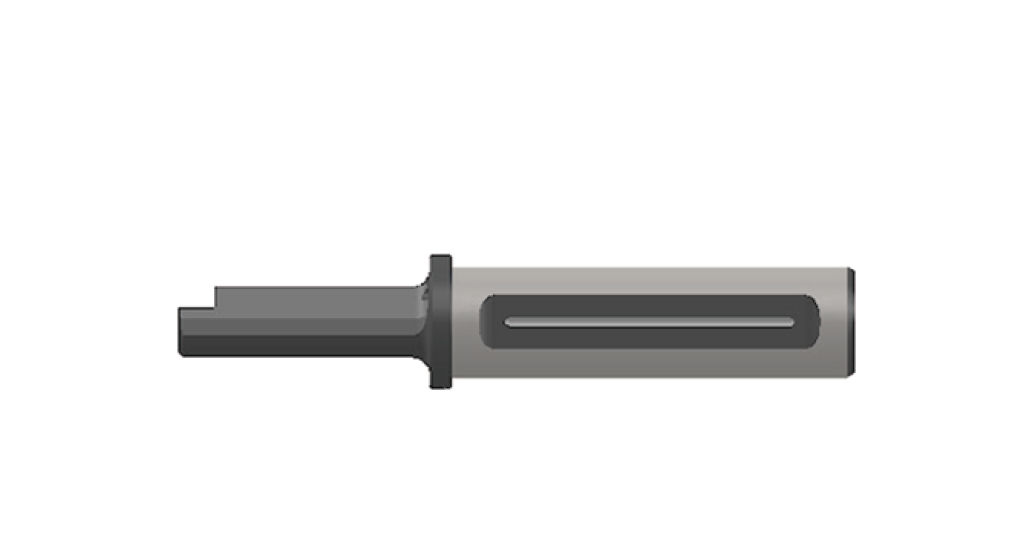

Tools for Square (mm)
10/13-32
Specifications
| Brand | duMONT CNC |
|---|---|
| Centering Plate | CP-1 |
| D1 (mm) | 32 |
| D2 (mm) | 8.6 |
| D3 (mm) | 38 |
| L1 (mm) | 40 |
| L2 (mm) | 149 |
| l3 (mm) | 9 |
| L4 (mm) | 100 |
| Long Description | absolute concentricity, square size variety, tools for square, mm |
| Minimum Hole (mm) | 10 |
| Mounting Screw | MS-1 |
| Short Description | duMONT CNC | Tools for Square (mm) | 10/13-32 |
| Type | Industrial Supplies |
| Website | https://pilotprecision.com/indexable-broaching-system/ |
| Weight | 672 |
| Page | 46 |
| PPP Line ID | 136 |
