duMONT
99723

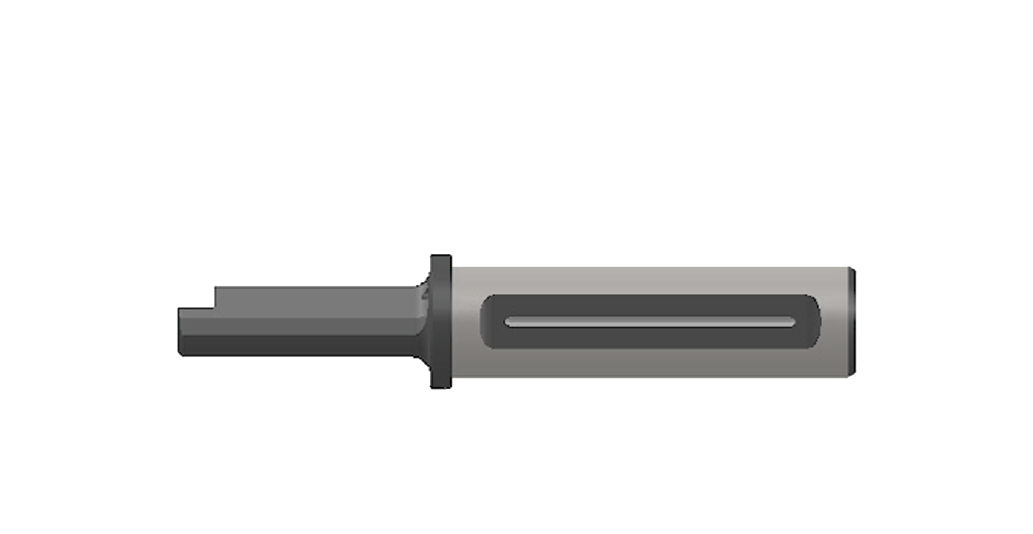

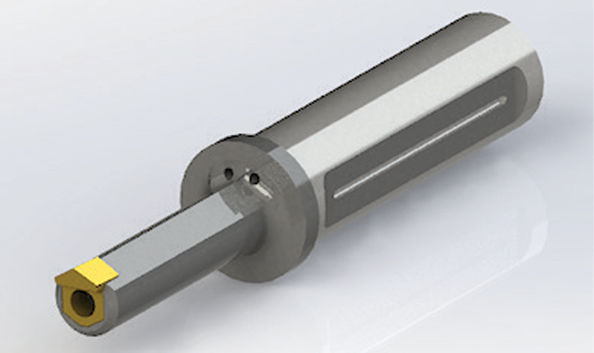

Tools for Hexagon (mm)
11/17-25
Specifications
| Brand | duMONT CNC |
|---|---|
| Centering Plate | CP-1 |
| D1 (mm) | 25 |
| D2 (mm) | 10 |
| D3 (mm) | 30 |
| L1 (mm) | 40 |
| L2 (mm) | 139 |
| l3 (mm) | 9 |
| L4 (mm) | 90 |
| Long Description | internal hexagons, absolute concentricity, hexagonal size variety, tools for hexagon, mm |
| Minimum Hole (mm) | 11 |
| Mounting Screw | MS-1 |
| Short Description | duMONT CNC | Tools for Hexagon (mm) | 11/17-25 |
| Type | Industrial Supplies |
| Website | https://pilotprecision.com/indexable-broaching-system/ |
| Weight | 368 |
| Page | 47 |
| PPP Line ID | 155 |
