duMONT
99818*

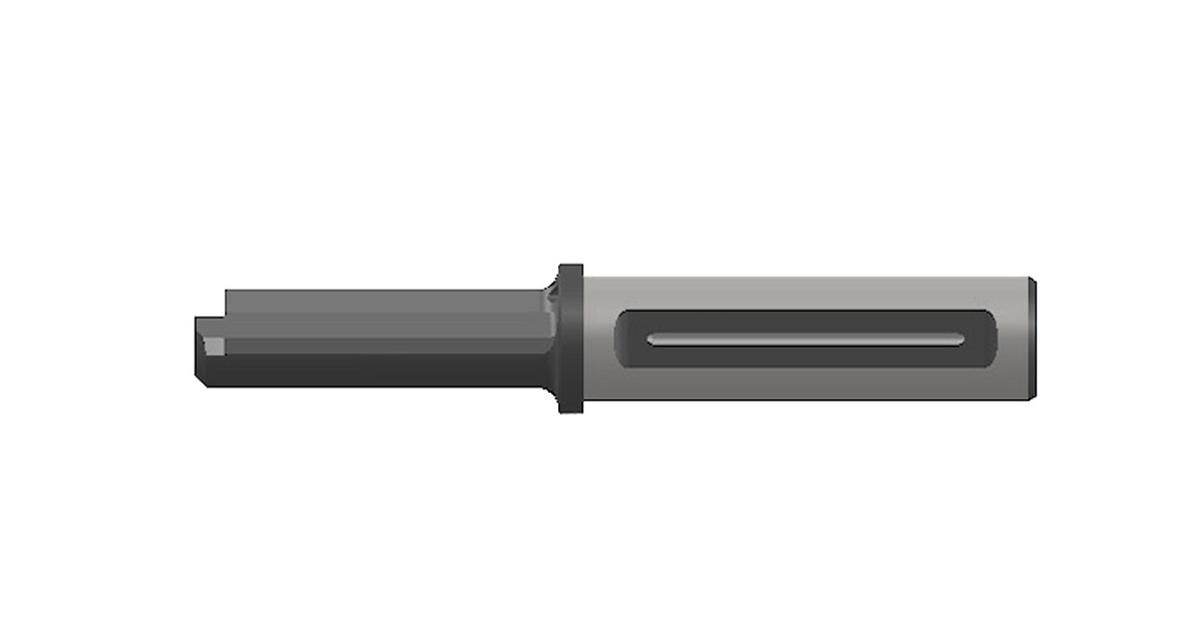

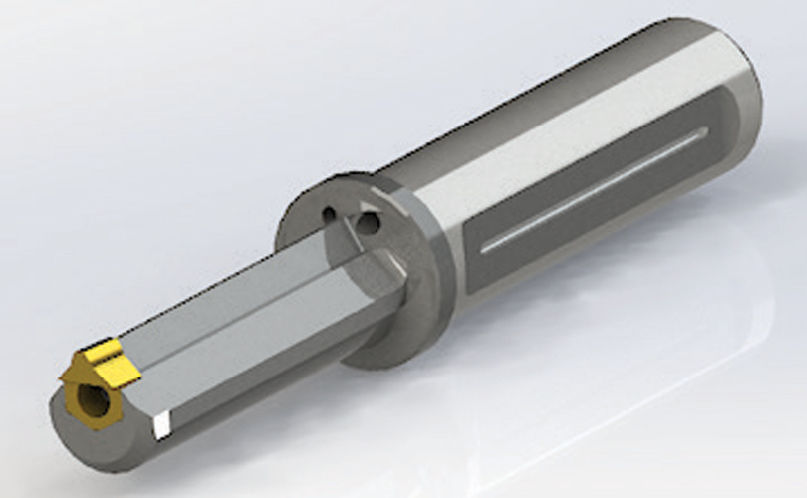

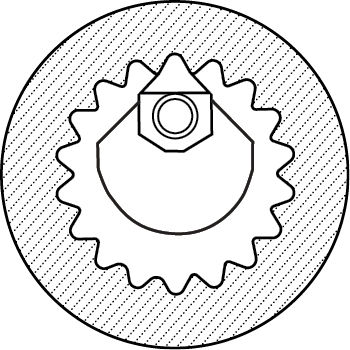

Tools for Splined Profiles (mm)
Specifications
| Brand | duMONT CNC |
|---|---|
| Centering Plate | CP-4 |
| D1 (mm) | 32 |
| D2 (mm) | 35 |
| D3 (mm) | 37 |
| Description Tool Holder Size | 14/16-32 |
| L1 (mm) | 126 |
| L2 (mm) | 231 |
| l3 (mm) | 9 |
| L4 (mm) | 100 |
| Long Description | splined profiles, SP tool line, customizable, mm |
| Minimum Hole (mm) | 38 |
| Mounting Screw | MS-3 |
| Short Description | duMONT CNC | Tools for Splined Profiles (mm) | 14/16-32 |
| Type | Industrial Supplies |
| Website | https://pilotprecision.com/indexable-broaching-system/ |
| Weight | 1,490 |
| Page | 48 |
| PPP Line ID | 187 |
