Emuge
2547K.020040

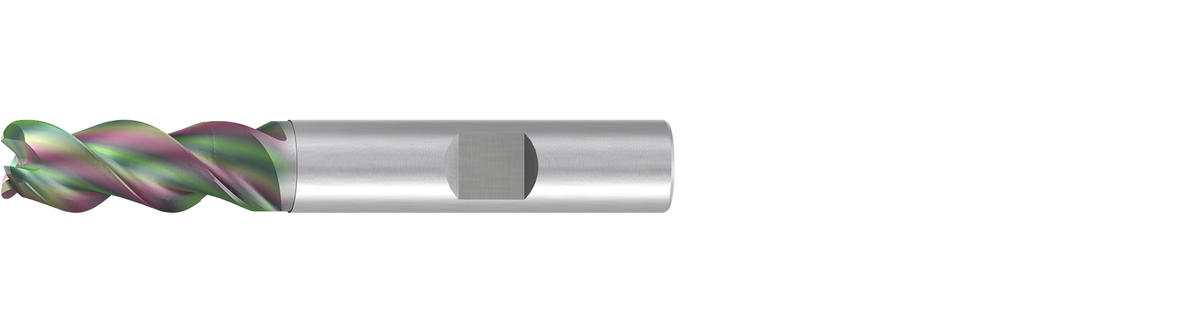

Emuge 2547K.020040
Specifications
| Corner Radius (Metric) | 4 mm |
|---|---|
| Flute Helix Angle | 38/40˚ |
| Short Description | 20mm - End Mill - Alu-Cut - Long - Rad 4 - GLT - HB |
| Flute Direction | RH |
| Cutting Edge Material | Carbide |
| Application | Finishing |
| Applicable Material | Wrought aluminum alloys and copper alloys |
| Coating | GLT |
| Coolant Fed | No |
| Coolant Supply Property | External |
| End Shape | Corner Radius |
| Shank Standard | DIN 6535 |
| Shank Tolerance | h6 |
| Length Group | Standard Length |
| Country of Origin | Germany |
