Emuge
3820A.005
Emuge 3820A.005
Specifications
| Coating/Finish | TIALN |
|---|---|
| Shank Type | Cylindrical |
| Diameter (Metric) | 5.0 |
| Overall Length (Metric) | 57.0 |
| Shank Size (Metric) | 6.0 |
| Material | Carbide |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Flute Helix Angle | 30 degrees |

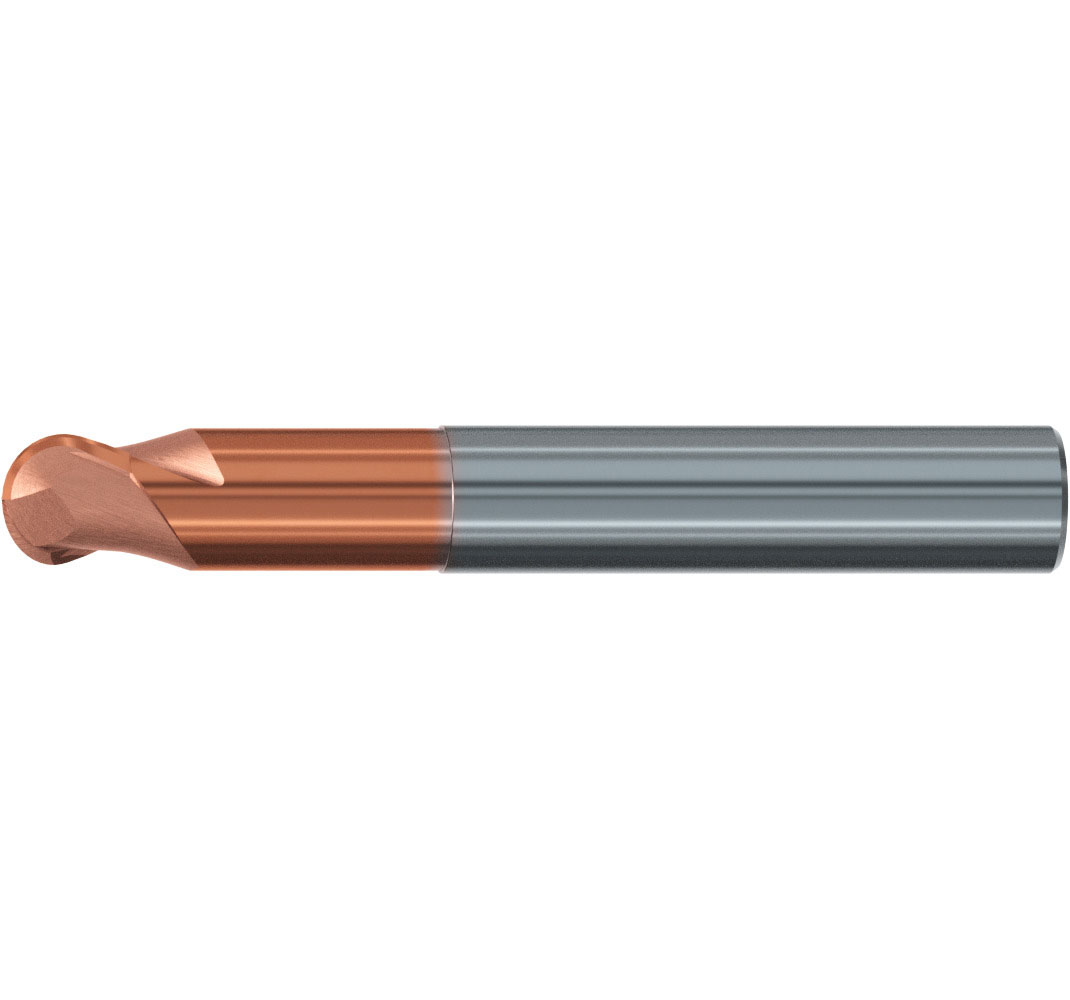

| Short Description | 5.0 mm -End Mill - Top-Cut - 2 Fl - Ball Nose - Stub - TIALN |
| End Shape | Ball |
| Group Length | Stub Length |
| Coolant Supply Property | External |
| Shank Tolerance | h5 |
| Shank Standard | DIN 6535 |
| Flute Length (Metric) | 5.0 |
| Flute Direction | Right Hand |
| Applicable Material | Universal Material |
| Country of Origin | Germany |
| Application | Finishing |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Length Group | Stub Length |
| Coolant Fed | No |
| Cutting Edge Material | Carbide |
