Emuge
3913TZ.025010

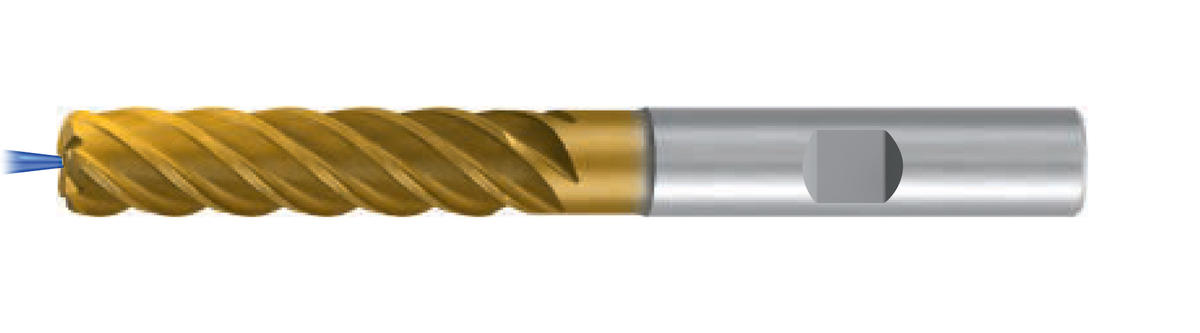

Emuge 3913TZ.025010
Specifications
| Cutting Diameter (Inch) | 1/4" |
|---|---|
| Flute Helix Angle | 38°/42° |
| Short Description | 1/4" - End Mill - TiNox-Cut - Trochoidal 4xD Rad 0.01 |
| Flute Direction | RH |
| Cutting Edge Material | Carbide |
| Application | Finishing |
| Applicable Material | Titanium, Stainless Steel, Nickel Alloys |
| Coating | TIN/TIALN |
| Coolant Fed | Axial |
| Coolant Supply Property | Internal |
| End Shape | Corner Radius |
| Shank Standard | DIN 6535 |
| Shank Tolerance | h6 |
| Length Group | 4xD |
| Country of Origin | USA |
