Emuge
3936L.050010

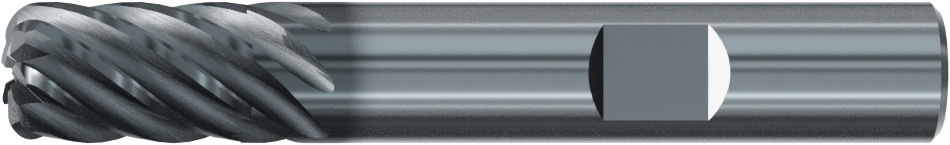

Emuge 3936L.050010
Specifications
| Cutting Diameter (Inch) | 1/2" |
|---|---|
| Flute Helix Angle | 34°/38° |
| Short Description | 1/2" - End Mill - Top-Cut VAR 7 Flt - 0.625 LOC, HB, Rad 0.010" |
| Flute Direction | RH |
| Cutting Edge Material | Carbide |
| Application | Finishing |
| Applicable Material | Universal Materials |
| Coating | ALCR |
| Coolant Fed | No |
| Coolant Supply Property | External |
| End Shape | Corner Radius |
| Shank Standard | DIN 6535 |
| Shank Tolerance | h6 |
| Length Group | Stub Length |
| Country of Origin | USA |
