Emuge
B020C350.0025

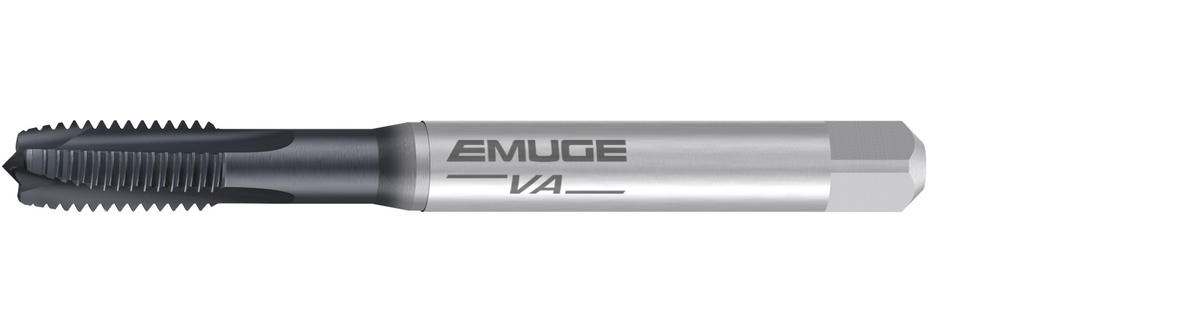

Emuge B020C350.0025
Specifications
| Thread Size | M 2.5x0.45 |
|---|---|
| Applicable Material | Alloyed Steel & Stainless Steel |
| Application | Spiral Point Taps |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | Straight |
| Flute Helix Angle | 0° |
| Shank Tolerance | h9 |
| Short Description | M 2.5 - Tap - Rekord B-VA - GLT-1 - Left Hand |
| Tap Chamfer Form | B |
| Tap Chamfer Lght | 4 -5 P |
| Thread Standard | M |
| Thread Tolerance Class | ISO 2/6H |
| Thread Pitch | 10:48:00 |
| Length Group | DIN Length |
| Country of Origin | Germany |
