Emuge
B0459611.5513

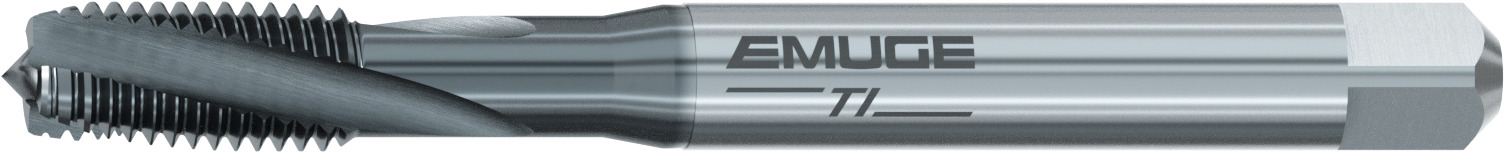

Emuge B0459611.5513
Specifications
| Thread Size | 3/8"-24 |
|---|---|
| Applicable Material | Titanium Alloys & High Tensile Materials |
| Application | Spiral Flute Taps |
| Coating | TICN |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | RH |
| Flute Helix Angle | 15° |
| Shank Tolerance | h9 |
| Short Description | UNJF 3/8-24 - 3BX - Tap - Rekord D-TI - TICN |
| Tap Chamfer Form | C |
| Tap Chamfer Lght | 2 - 3 P |
| Thread Length | 18 mm |
| Thread Standard | UNJF |
| Length Group | DIN Length |
| Class Of Fit | 3BX |
| Country of Origin | Germany |
