Emuge
B0503000.0030
Emuge B0503000.0030
Specifications
| Thread Size | M 3x0.5 |
|---|---|
| Applicable Material | Steel Alloys & Stainless Steel |
| Application | Spiral Flute Taps |
| Coating | Bright |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | RH |
| Flute Helix Angle | 35° |
| Shank Tolerance | h9 |

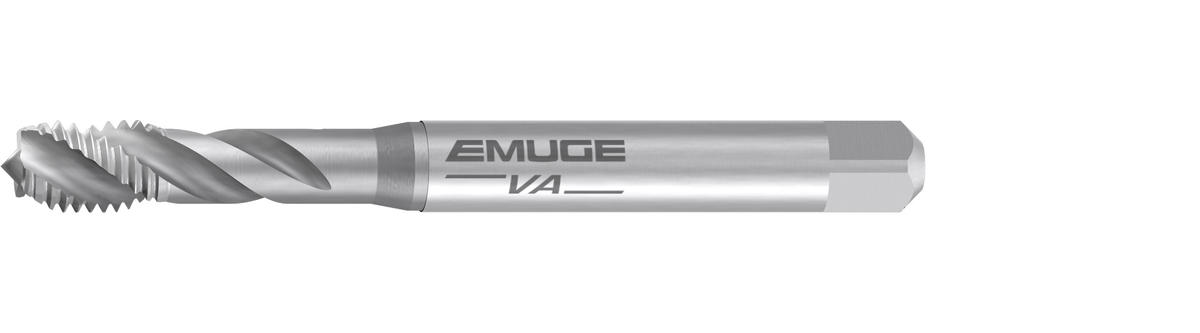

| Short Description | M 3 - Tap - Enorm VA -Blind Hole |
| Tap Chamfer Form | C |
| Tap Chamfer Lght | 2 -3 P |
| Thread Standard | M |
| Thread Tolerance Class | ISO 2/6H |
| Thread Pitch | 12:00:00 |
| Length Group | DIN Length |
| Country of Origin | Germany |
