Emuge
BU459611.5613
Emuge BU459611.5613
Specifications
| Thread Size | #6-32 |
|---|---|
| Applicable Material | Titanium Alloys & High Tensile Materials |
| Application | STI Taps |
| Coating | TICN |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | RH |
| Flute Helix Angle | 15° |
| Shank Tolerance | h9 |

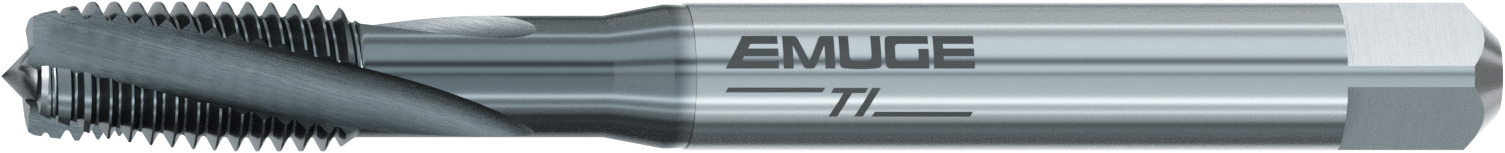

| Short Description | STI #6-32 UNC - Tap - Rekord D-TI - Titanium - TICN |
| Tap Chamfer Form | C |
| Tap Chamfer Lght | 2 -3 P |
| Thread Length | 0.591" |
| Thread Standard | STI-UNC |
| Thread Tolerance Class | 3BX |
| Length Group | DIN Length |
| Country of Origin | Germany |
