Emuge
BU50C41Z.5038

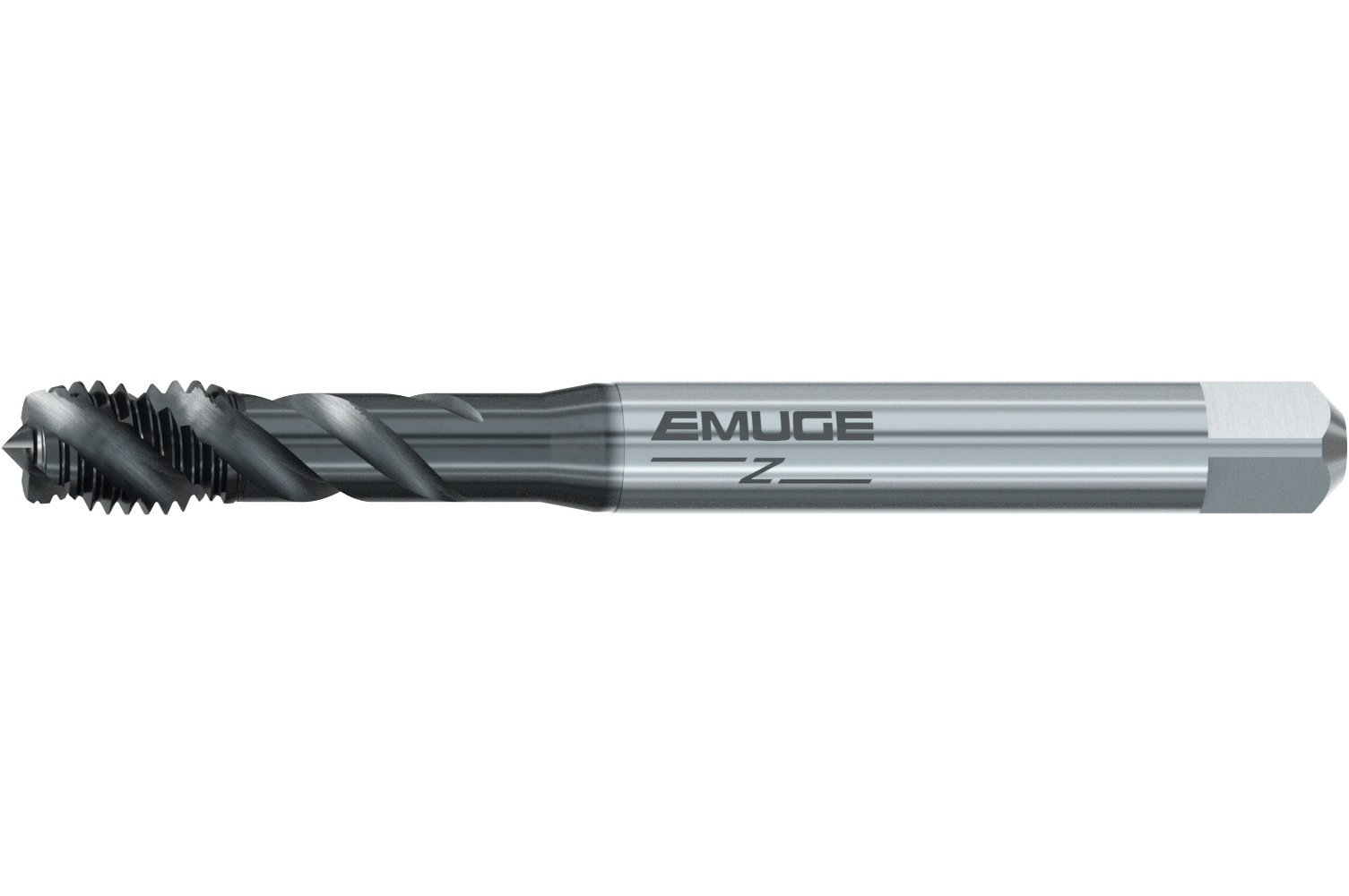

Emuge BU50C41Z.5038
Specifications
| Thread Size | #5-44 |
|---|---|
| Applicable Material | Alloyed Steel & Long Chipping Materials |
| Application | Spiral Flute Taps |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | RH |
| Flute Helix Angle | 35° |
| Shank Tolerance | h9 |
| Short Description | #5-44 - Tap -Enorm Z-Oversize 1 - H4 - GLT-1 |
| Tap Chamfer Form | C |
| Tap Chamfer Lght | 2 -3 P |
| Thread Length | 0.227" |
| Thread Standard | UNF |
| Thread Tolerance Class | H4 |
| Length Group | DIN Length |
| Country of Origin | Germany |
