Emuge
C0100501.0122

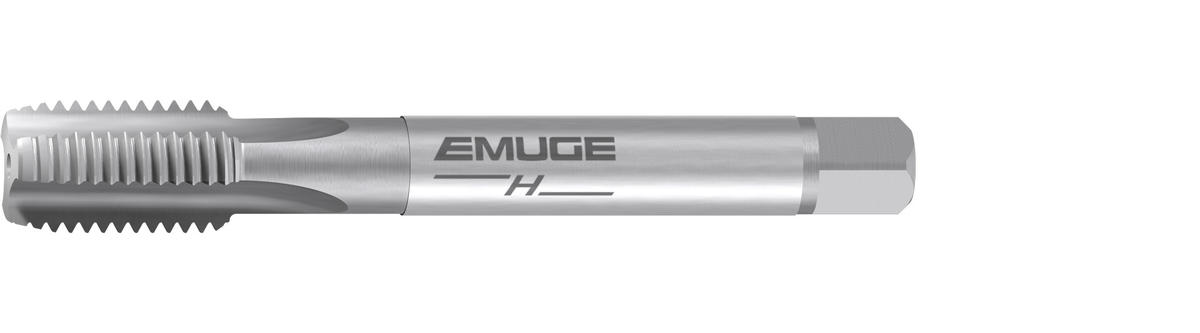

Emuge C0100501.0122
Specifications
| Thread Standard | M |
|---|---|
| Short Description | M 22- Tap - A-H |
| Thread Size | M 22x2.5 |
| Flute Helix Angle | 0° |
| Thread Tolerance Class | 6HX |
| Thread Length | 32 mm |
| Shank Tolerance | h9 |
| Length Group | DIN Length |
| Coating | NT |
| Flute Direction | Straight |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Tap Chamfer Form | C |
| Application | Straight Flute Taps |
| Cutting Edge Material | HSSE |
| Tap Chamfer Lght | 2 -3 P |
| Country of Origin | Germany |
| Applicable Material | Hardened Steel, Cast Iron |
