Emuge
C0100501.0330

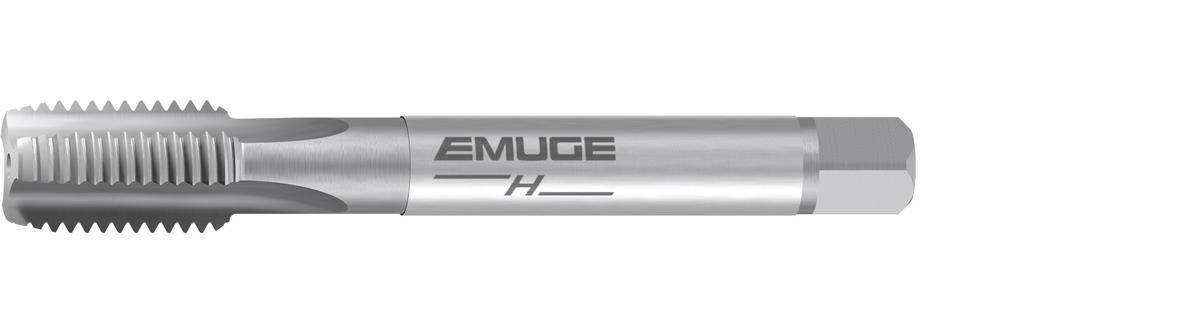

Emuge C0100501.0330
Specifications
| Thread Size | M 14 x1.25 |
|---|---|
| Applicable Material | Hardened Steel, Cast Iron |
| Application | Straight Flute Taps |
| Coating | NT |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | Straight |
| Flute Helix Angle | 0° |
| Shank Tolerance | h9 |
| Short Description | M 14x1.25- Tap - A-H |
| Tap Chamfer Form | C |
| Tap Chamfer Lght | 2 -3 P |
| Thread Length | 22 mm |
| Thread Standard | MF |
| Thread Tolerance Class | 6HX |
| Length Group | DIN Length |
| Country of Origin | Germany |
