Emuge
C0208430.0114
Emuge C0208430.0114
Specifications
| Thread Size | M 14x2 |
|---|---|
| Applicable Material | Steel Alloys & Long Chipping Materials |
| Application | Spiral Point Taps |
| Coating | TiN |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | Straight |
| Flute Helix Angle | 0° |
| Shank Tolerance | h9 |

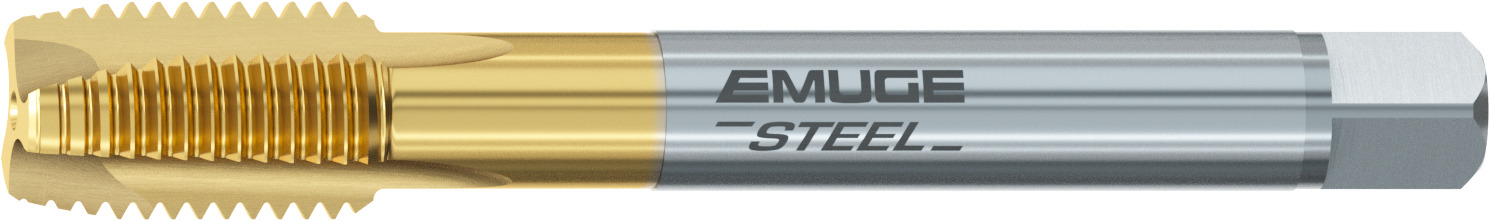

| Short Description | M 14 - Tap - Rekord B-Steel L-7G -TIN |
| Tap Chamfer Form | B |
| Tap Chamfer Lght | 4 -5 P |
| Thread Length | 26 mm |
| Thread Standard | M |
| Thread Tolerance Class | 7G |
| Length Group | DIN Length |
| Country of Origin | Germany |
