Emuge
C0208F01.0303

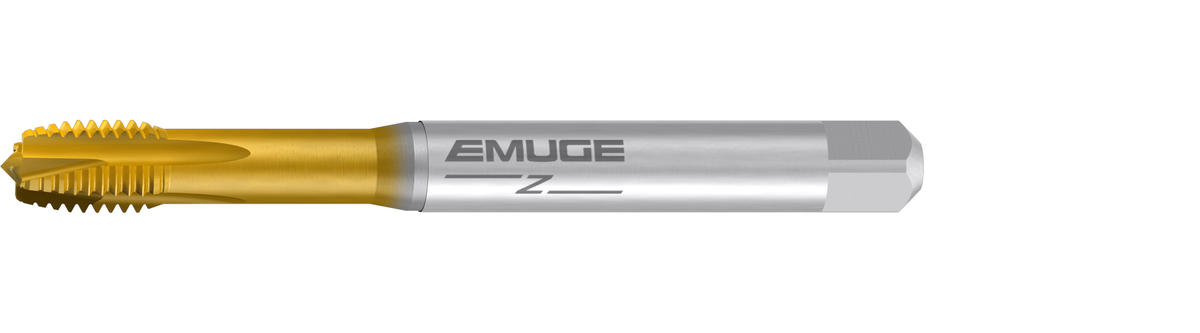

Emuge C0208F01.0303
Specifications
| Type | Rekord B-Z |
|---|---|
| Diameter (Metric) | M12 |
| Coating/Finish | TiN-70 |
| Overall Length (Metric) | 100.0 |
| Number Of Flutes | 4.0 |
| Thread Size | M12x1.50 |
| Material | HSSE-PM |
| Short Description | M 12x1.5 -Tap -Rekord B-Z -PM- TIN-70 |
| Thread Standard | MF |
| Thread Tolerance | 6HX |
| Chamfer | Plug |
| Tap Square (Metric) | 7.0 |
| Thread Length (Metric) | 15.0 |
| Tap Chamfer Lght | 4 -5P |
| Tap Chamfer Form | B |
| Applicable Material | Steel Alloys and Long Chipping Materials |
| Length Type | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle | 0 degrees |
| Dimensional Standard | DIN/DIN |
| Connection Dia. (Metric) | 9.0 |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Country of Origin | Germany |
| Unit Of Measure | Metric |
| Base Item Number | C0208F01 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Thread Tolerance Class | 6HX |
| Thread Length | 15 mm |
| Length Group | DIN Length |
| Application | Spiral Point Taps |
| Cutting Edge Material | HSSE-PM |
