Emuge
C020A621.0120

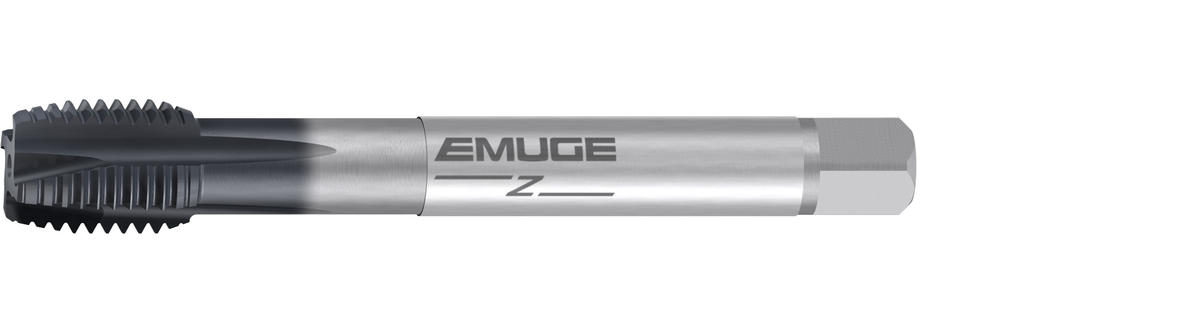

Emuge C020A621.0120
Specifications
| Thread Size | M 20x2.5 |
|---|---|
| Applicable Material | Steel Alloys and Long Chipping Materials |
| Application | Spiral Point Taps |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE-PM |
| Flute Direction | Straight |
| Flute Helix Angle | 0° |
| Shank Tolerance | h9 |
| Short Description | M 20 -Tap -Rekord B-Z -PM - GLT-1 - 6GX |
| Tap Chamfer Form | B |
| Tap Chamfer Lght | 4 -5 P |
| Thread Length | 25 mm |
| Thread Standard | M |
| Thread Tolerance Class | 6GX |
| Length Group | DIN Length |
| Country of Origin | Germany |
