Emuge
C020C301.4040
Emuge C020C301.4040
Specifications
| Thread Size | 3/4"-14 |
|---|---|

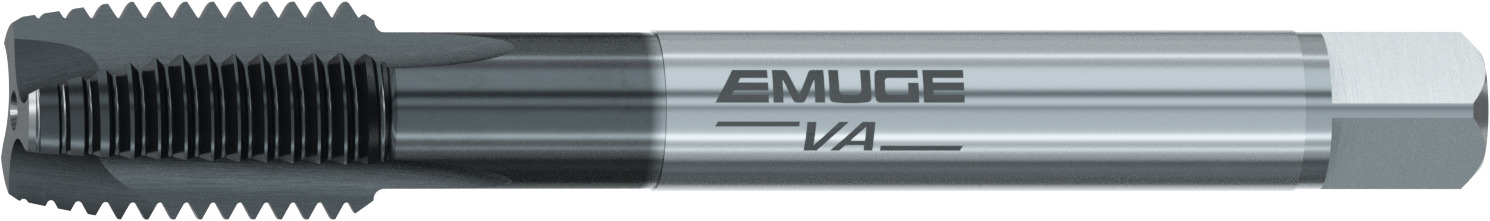

| Short Description | G 3/4-14 - Pipe Tap - Rekord B-VA - GLT-1 - Whitworth |
| Flute Helix Angle | 0° |
| Thread Tolerance Class | X |
| Thread Standard | G |
| Thread Length | 28 mm |
| Shank Tolerance | h9 |
| Length Group | DIN Length |
| Flute Direction | RH |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Tap Chamfer Form | B |
| Application | Pipe Taps |
| Cutting Edge Material | HSSE |
| Tap Chamfer Lght | 4 -5 P |
| Material Grade | HSSE |
| Country of Origin | Germany |
| Applicable Material | Steel Alloys, Stainless Steel, Copper Alloys |
