Emuge
C020S800.0114

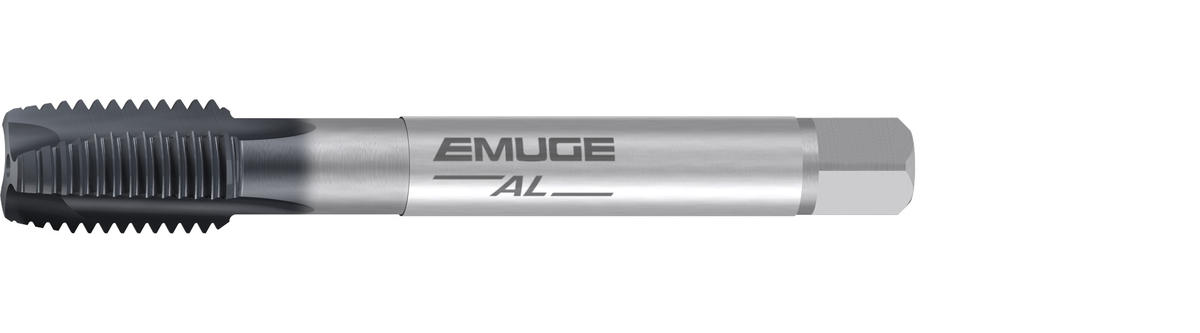

Emuge C020S800.0114
Specifications
| Thread Size | M 14 x2 |
|---|---|
| Applicable Material | Wrought Aluminum Alloys |
| Application | Spiral Point Taps |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | Straight |
| Flute Helix Angle | 0° |
| Shank Tolerance | h9 |
| Short Description | M 14 Tap - AL-Aluminum-Plug - GLT 8 |
| Tap Chamfer Form | B |
| Tap Chamfer Lght | 4 -5 P |
| Thread Length | 26 mm |
| Thread Standard | M |
| Thread Tolerance Class | ISO 2/6H |
| Length Group | DIN Length |
| Country of Origin | Germany |
