Emuge
C0803101.0788
Emuge C0803101.0788
Specifications
| Thread Size | M 110x6 |
|---|---|
| Applicable Material | Wide Range of Materials |
| Application | Spiral Point Taps |
| Coating | TIN |
| Coolant Fed | No |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Flute Direction | Straight |
| Flute Helix Angle | 0° |
| Shank Tolerance | h9 |

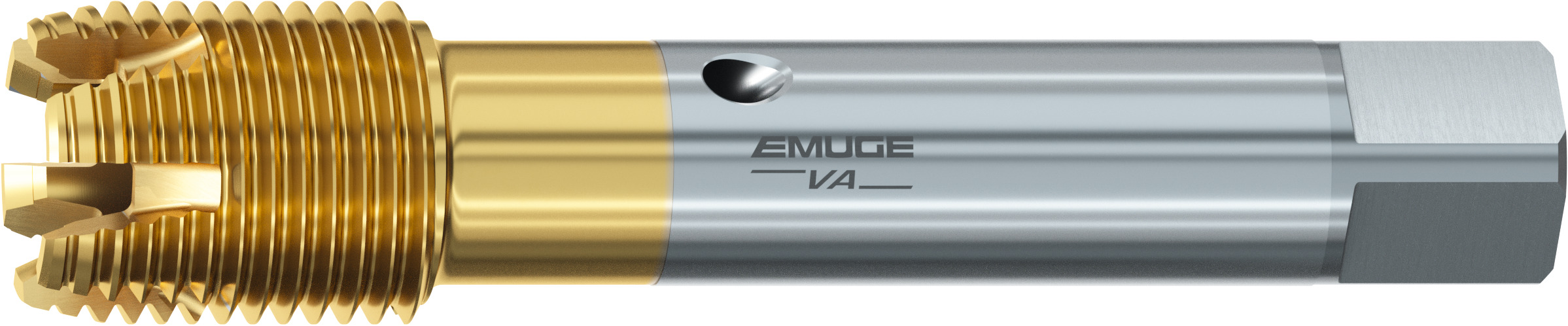

| Short Description | M 110x6- Tap - Robust 2X-VA - TIN |
| Tap Chamfer Form | C |
| Tap Chamfer Lght | 2 -3 P |
| Thread Standard | MF |
| Length Group | Extra Length |
| Country of Origin | Germany |
