Emuge
C108A601.0331

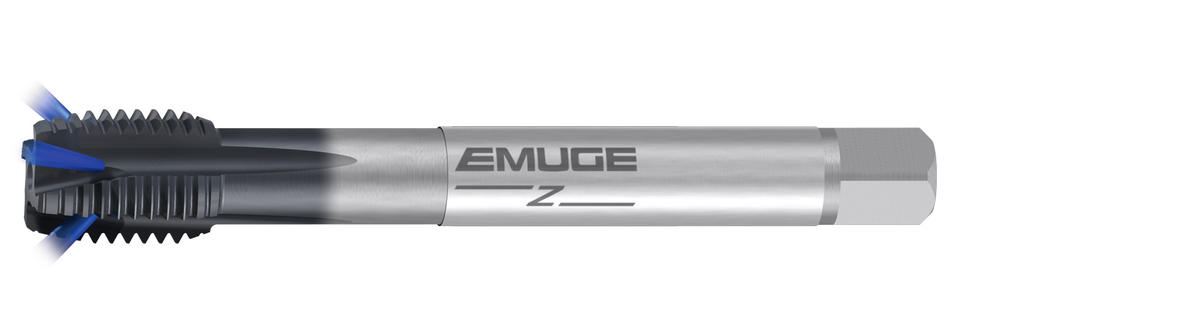

Emuge C108A601.0331
Specifications
| Thread Size | M 14 x1.5 |
|---|---|
| Applicable Material | Steel Alloys and Long Chipping Materials |
| Application | Spiral Point Taps |
| Coolant Fed | Radial |
| Coolant Supply Property | Internal |
| Cutting Edge Material | HSSE-PM |
| Flute Direction | Straight |
| Flute Helix Angle | 0° |
| Shank Tolerance | h9 |
| Short Description | M 14x1.5 - Tap - Rekord Z - Coolant - PM - GLT1 |
| Tap Chamfer Form | B |
| Tap Chamfer Lght | 4 -5 P |
| Thread Length | 15 mm |
| Thread Standard | M |
| Thread Tolerance Class | 6HX |
| Length Group | DIN Length |
| Country of Origin | Germany |
