Emuge
C1961P01.0303

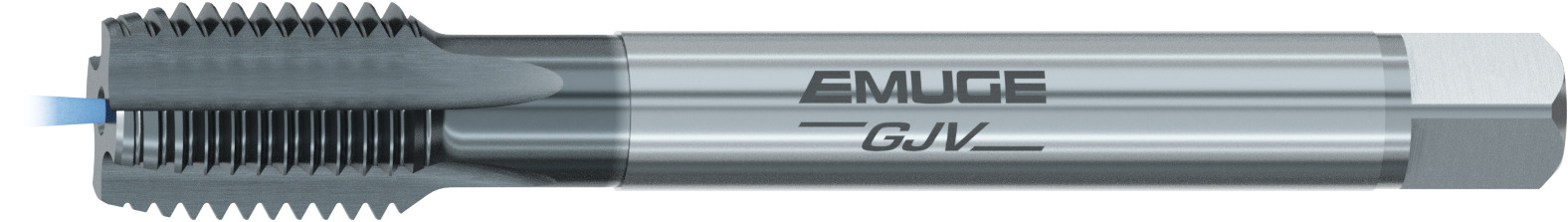

Emuge C1961P01.0303
Specifications
| Thread Standard | MF |
|---|---|
| Short Description | M 12 x 1.5 - Tap - Rekord A - GJV/E - Carbide - IKZ |
| Thread Size | M 12x1.5 |
| Flute Helix Angle | 0° |
| Thread Tolerance Class | 6HX |
| Thread Length | 22 mm |
| Shank Tolerance | h9 |
| Length Group | DIN Length |
| Coating | TICN |
| Flute Direction | RH |
| Coolant Fed | Axial |
| Coolant Supply Property | Internal |
| Tap Chamfer Form | E |
| Application | Straight Flute Taps |
| Cutting Edge Material | Carbide |
| Tap Chamfer Lght | 1.5 -2 P |
| Country of Origin | Germany |
| Applicable Material | CGI / Compacted graphite iron |
