Emuge
C3169401.0114

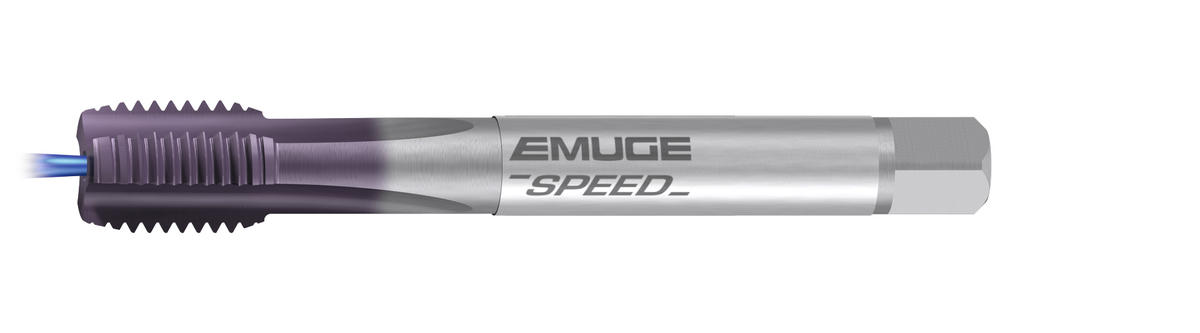

Emuge C3169401.0114
Specifications
| Thread Standard | M |
|---|---|
| Short Description | M 14- Rekord - Speed Tap - Coolant - TICN |
| Thread Size | M 14x2 |
| Flute Helix Angle | 0° |
| Thread Tolerance Class | 6HX |
| Thread Length | 20 mm |
| Shank Tolerance | h9 |
| Length Group | DIN Length |
| Coating | TiCN |
| Flute Direction | Straight |
| Coolant Fed | Axial |
| Coolant Supply Property | Internal |
| Tap Chamfer Form | E |
| Application | Straight Flute Taps |
| Cutting Edge Material | HSSE |
| Tap Chamfer Lght | 1.5 -2 P |
| Country of Origin | Germany |
| Applicable Material | Short Chipping Cast Materials |
